Max-E Boost 5.0 Bar Pressure Booster Pump Set 240V

SKU
98536448
MRRP £5,784.00 + VAT Our price £3,285.00 (+ VAT) Incl. VAT: £3,942.00
Order within
Hours
Mins
Secs
for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

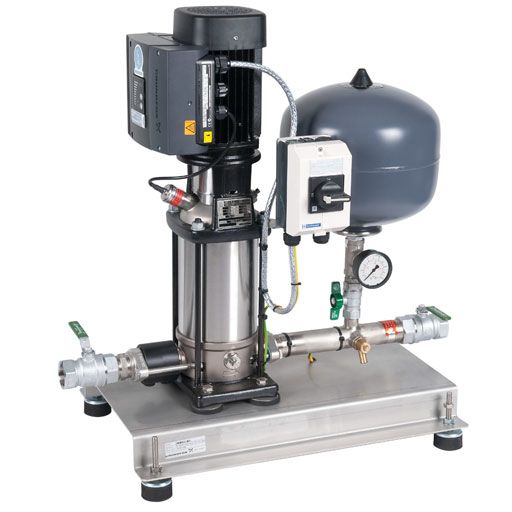

The Grundfos Max-E Boost is a single pump packaged cold water booster set, designed as a compact and cost effective solution for pressure boosting in large domestic properties with two or more bathrooms.

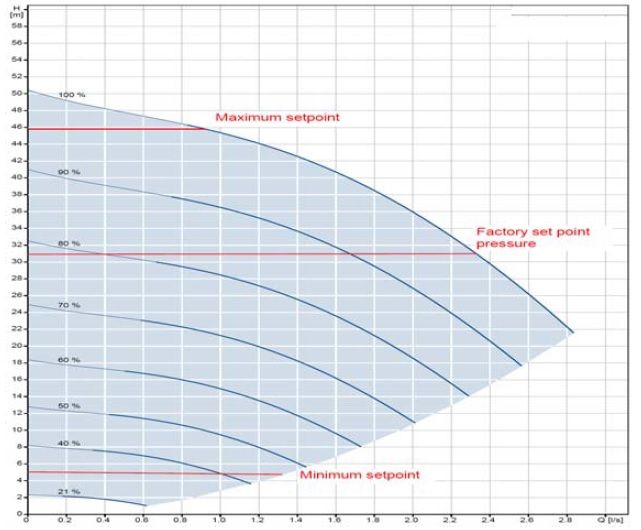

The Max-E Boost uses the latest variable speed pump motor technology, to maintain a constant discharge pressure up to a maximum setting of 4.5 bar (factory setting 3 bar). The speed controlled operation of the Grundfos CRIE 5-5 helps eliminate pipe work noise caused by water hammer, normally associated with standard on/off controlled pumps The pump is quiet in operation and its compact size make it suitable for installation in a utility room or garage, or a frost protected outdoor enclosure.

With WRAS approved parts the CRIE 5-5 stainless steel vertical multistage pump is factory commissioned to deliver a constant 3 bar pressure at flow rates up to 2.3 l/s.

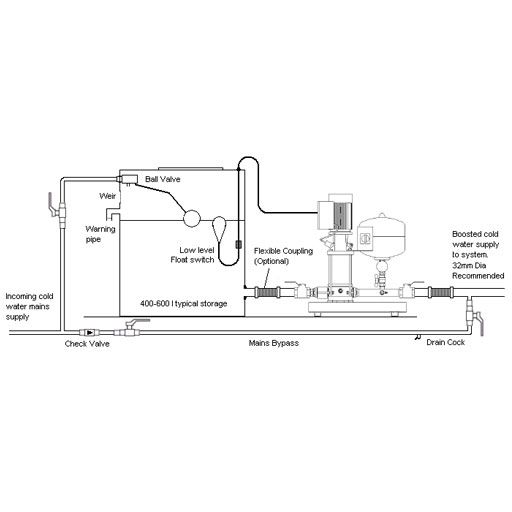

The Max-E Boost can be connected to any standard Water Byelaw approved cold water storage tank having an AB Air Gap of adequate capacity to suit the water consumption of the installation.

The pump motor control panel indicates operation and fault conditions, and allows simple adjustment of the discharge pressure from 0.5bar to a maximum of 4.5 bar.

The Max-E Boost is intended to supply boosted cold water from a water storage tank to a pressurised hot and cold water system at a constant outlet pressure.

More Information
SKU 98536448
Manufacturer Grundfos
Manufacturers Warranty 2 Years
GTIN 5711496769054
Weight 60.0 Kg

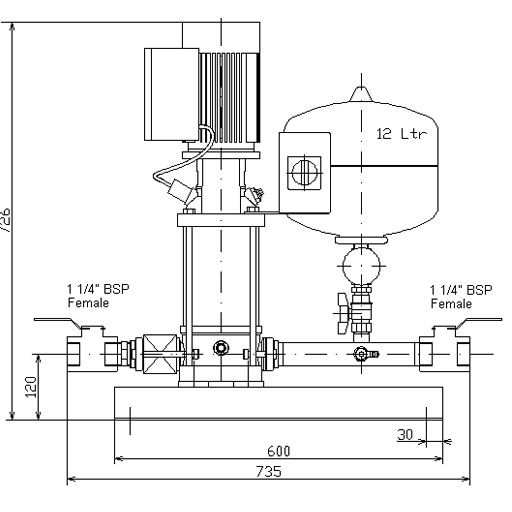

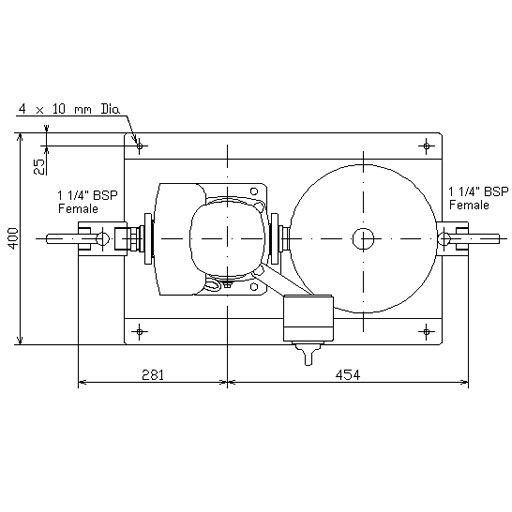

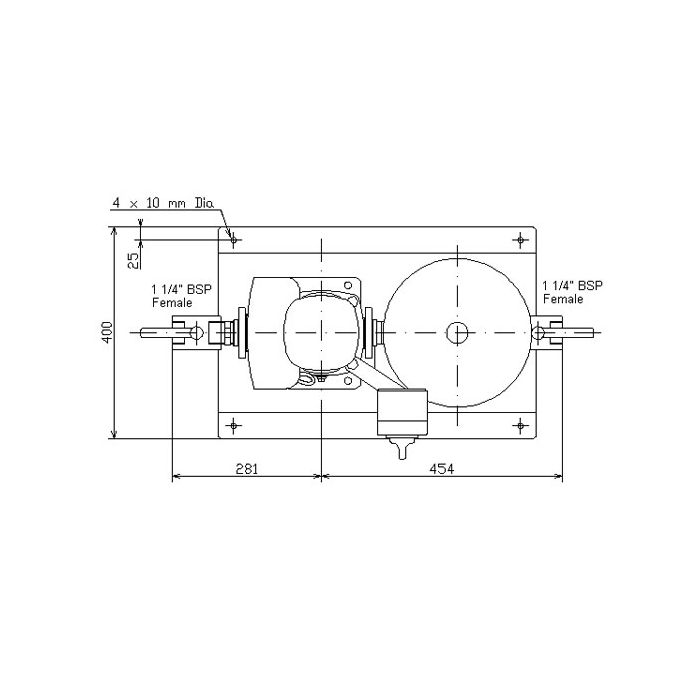

Dimensions 735mm Long x 726mm Deep x 400mm Wide
Motor Size (kW/W) 1.5 kW
Full Load Current (FLC) 7.45A
Voltage 240V 1Ph 50Hz
Max Flow 2.4 l/sec
Max Head 46m
Material Stainless Steel
