The Grundfos Home Booster is a self-contained cold water booster set, designed for domestic properties where the existing mains water supply is insufficient to meet the demand requirements of pressurised hot and cold water systems.
The unit features an integral 200 litre storage tank with Type AB air gap, in accordance with Water Byelaws regulations. The high quality stainless steel pump delivers high efficiency, sustained performance, long working life and quiet operation. The pump is controlled by the PM2 Pressure Manager controller, the latest controller from Grundfos.

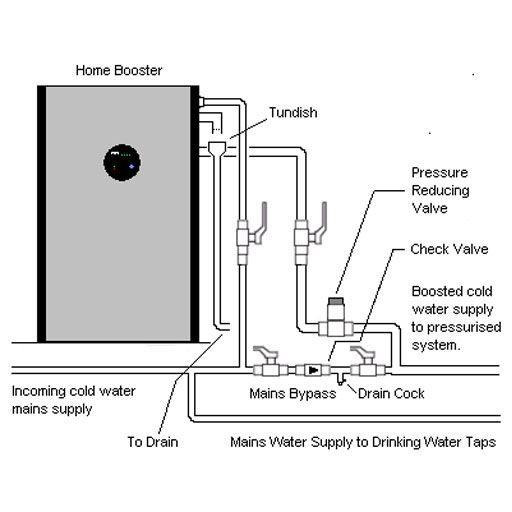

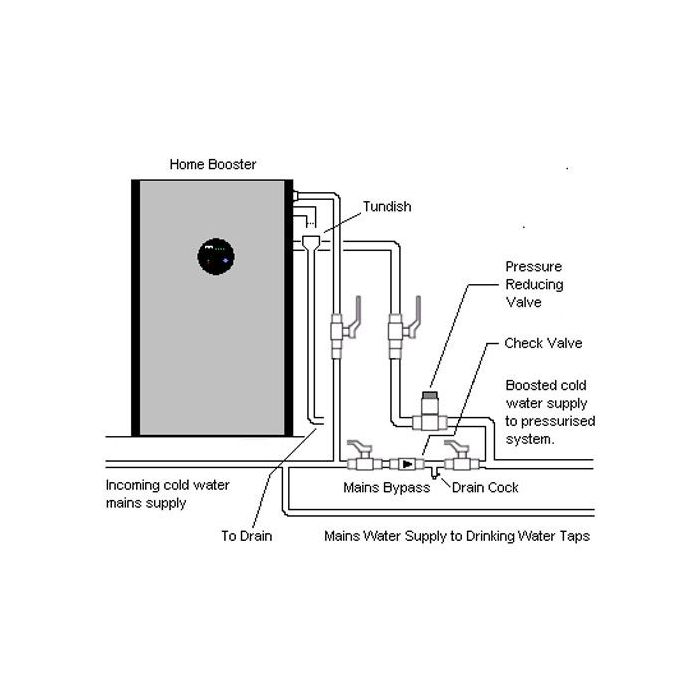

Installation is straight forward requiring connection of mains cold water supply, discharge pipe, overflow pipe and electrical connections.
The Home Booster is suitable for most domestic properties with one or two standard bathrooms with standard fittings, or en-suite, and cloakroom, plus other normal household appliances.
For properties with 4 to 5 occupants, or where the storage tank refills very slowly due to poor mains water pressure, an additional 180 litre water storage slave tank option is available to increase the storage capacity is recommended.
Features and Benefits
- Integrated 200 litre storage tank (180 litres usuable volume)
- PM2 Pressure Manager on/off
- Nominal performance 3 bar or 4.5 bar at 0.5 l/s (depending on model)
- Packaged set ready for installation
- WRAS Approved Components
- Compact and cost-effective solution
- High quality stainless steel pump
|Manufacturers Warranty||2 Years|

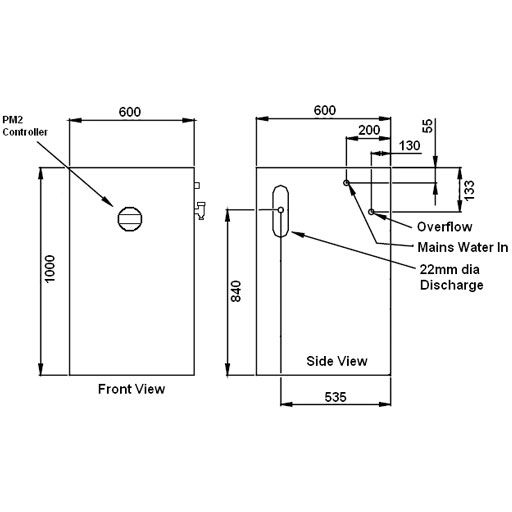

|Dimensions||1000mm (h) x 600mm (w) x 600mm (d)|
|Motor Size (kW/W)||870W|
|Full Load Current (FLC)||4.0A|
|Voltage||240V 1Ph 50Hz|
|Max Flow||1.2 l/sec|
|Max Head||5.6 Bar|
