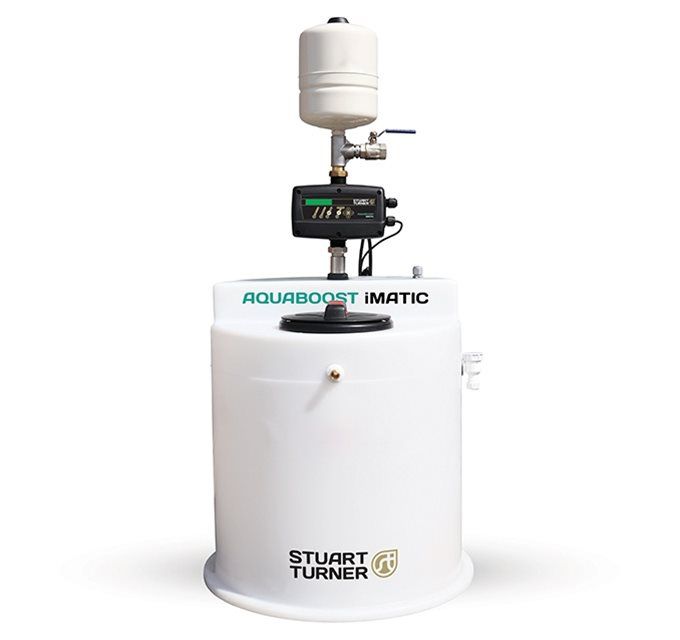

Stuart Turner Aquaboost iMatic 400 Single Pump Booster Set

SKU
47359
MRRP £3,156.00 + VAT Our price £2,020.00 (+ VAT) Incl. VAT: £2,424.00
Order within
Hours
Mins
Secs
for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

iMatic Booster System

iMatic 0304 11S-CMT/8 400



The Aquaboost iMatic range of booster sets features one or two submersible multistage pumps controlled by a dedicated variable speed frequency invertor.

The single pump 400 litre tank is fitted with a 0304 stainless steel pump, capable of delivering flow rates up to 6.0 m³/hour and capable of producing head pressures of up to 6.4 bar.





Key Features
  • Single pump
  • Flow rates up to 6.0 m³/h
  • Head pressure up to 6.4 bar
  • Single 304 stainless steel pump
  • 400 litre plastic molded tank, constructed from WRAS approved material
  • Dry run protection
  • Stainless steel / brass discharge fittings
  • Nickel plated WRAS approved ball valves
  • Union fittings on controller
  • WRAS approved 8 litre pressure vessel
  • BMS volt free contacts
More Information
SKU 47359
Manufacturer Stuart Turner
Manufacturers Warranty 2 Years
GTIN 5050400473596
Weight 45.0 Kg

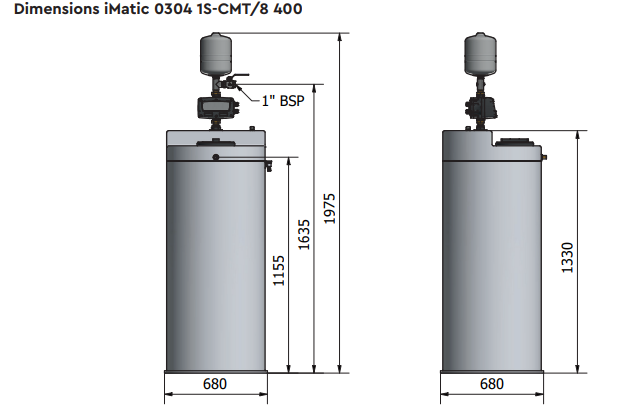

Dimensions 680mm x 680mm x 1975mm
Inlet Dimension 1/2" bsp
Discharge Dimension 1" bsp
Full Load Current (FLC) 6 A
Voltage 240V 1Ph 50Hz
Max Flow 6.0 m3/hr
Max Head 6.4 Bar
