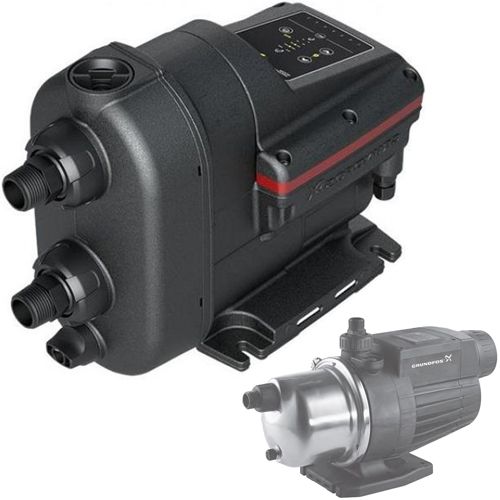

Grundfos MQ 3-45 (4 BAR) Compact Home Booster 240V (Replaced with Scala1 3-45 99530410)

MRRP £1,060.00 + VAT Our price £405.00 (+ VAT) Incl. VAT: £486.00
Order within
for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

The Grundfos MQ 3-45 range is now obsolete and has been replaced by the Scala1 3-45 99530410

This is NOT dimensionally interchangeable, please see drawings for Scala1 3-45


Grundfos MQ 3-45 (4 Bar) Compact Home Booster Pumping System is an all-in-one unit which rids the need of a separate pressure tank, pressure switch, electrical connections, pipe fittings, etc.  The MQ has no pressure tank or pressure switch, therefore, less fittings are needed for installation.  The Compact all-in-one system consists of:

  • A user friendly control panel
  • Built-in pressure tank
  • Automatic stop / start for flow and pressure
  • Superb self-priming capability
  • Built-in protection against dry-running
  • Low-noise
  • Overload protection


More Information
SKU 96607288
Manufacturer Grundfos
Manufacturers Warranty 2 Years
GTIN 5700832231546
Weight 13.0 Kg
Dimensions 570mm x 320mm 218mm
Motor Size (kW/W) 1000w
Full Load Current (FLC) 4.5A
Voltage 240V 1Ph 50Hz
Cable Length 2m
Max Flow 3m3/h
Max Head 48m
Material Plastic
