Calpeda NMM 10/FE End Suction Threaded Pump 240V

MRRP £580.00 + VAT Our price £406.00 (+ VAT) Incl. VAT: £487.20
Order within
for next day delivery i

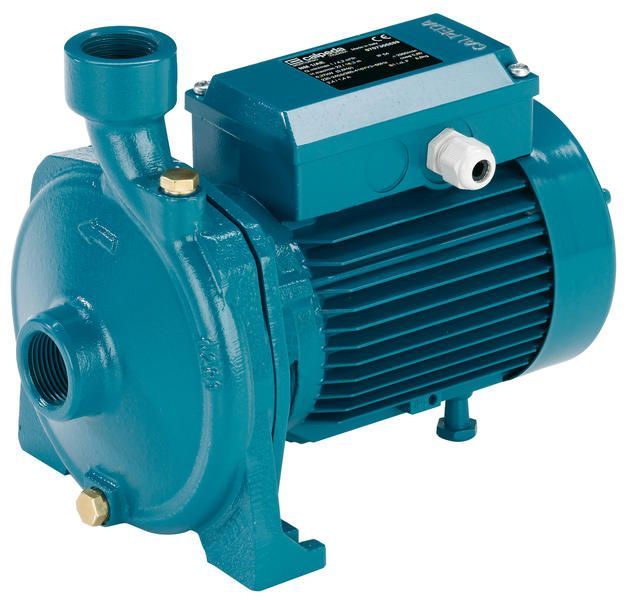

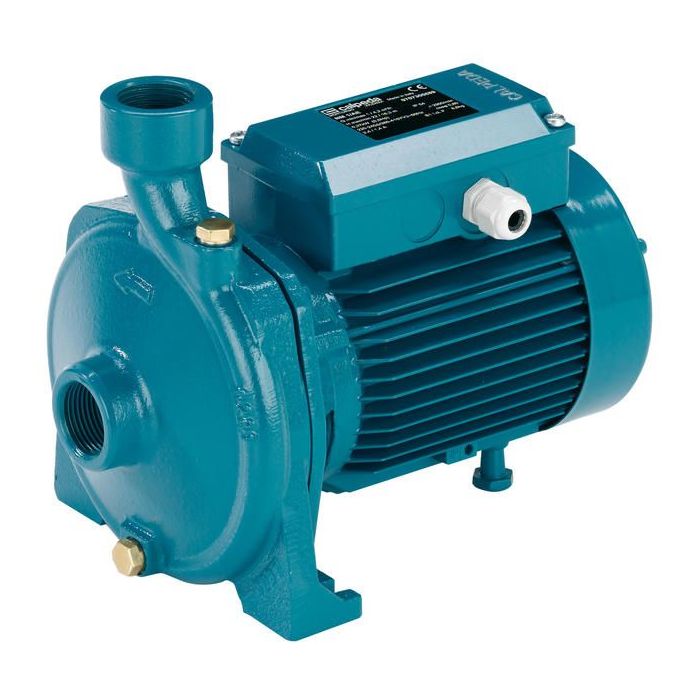

Calpeda NMM 10/FE close coupled, centrifugal end suction pump with screwed (threaded) connection and 0.55kW (0.75HP) 240V 1Ph 50Hz motor.

Calpeda NM and NMD threaded pump range are close-coupled, centrifugal pumps with electric motor and extended shaft directly connected to the pump.

NM:   single-impeller
NMD:  two back-to-back impellers (with axial thrust balancing).

The NM and NMD threaded pump range are suitable for the following applications:

  • Clean liquids without  non-aggressive abrasives ( solids content up to 0.2%)
  • Mains water supply
  • Heating, air-conditioning, cooling and circulation plants
  • Civil and industrial applications
  • Fire fighting applications
  • Irrigation
More Information
Manufacturer Calpeda
Manufacturers Warranty 1 Year
Weight 19.3 Kg

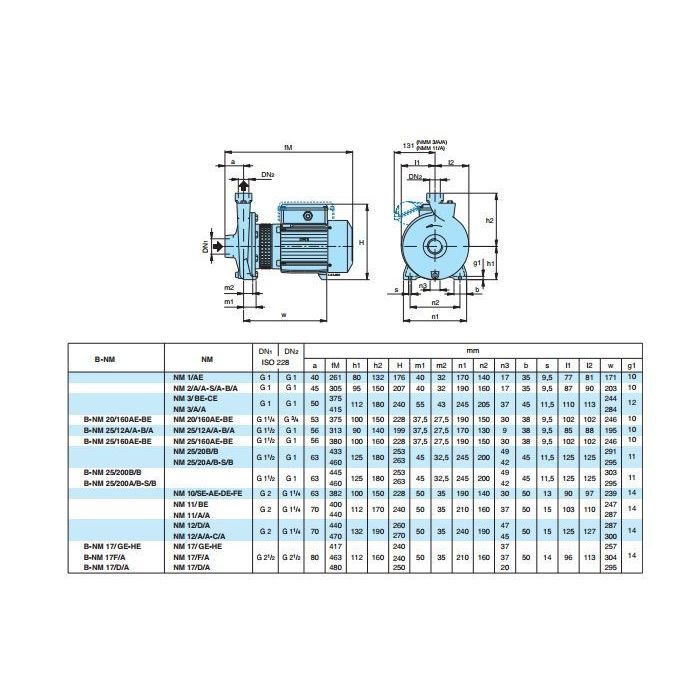

Dimensions 382mm Deep x 190mm Wide x 250mm High
Motor Size (kW/W) 0.55 kW
Voltage 240V 1Ph 50Hz

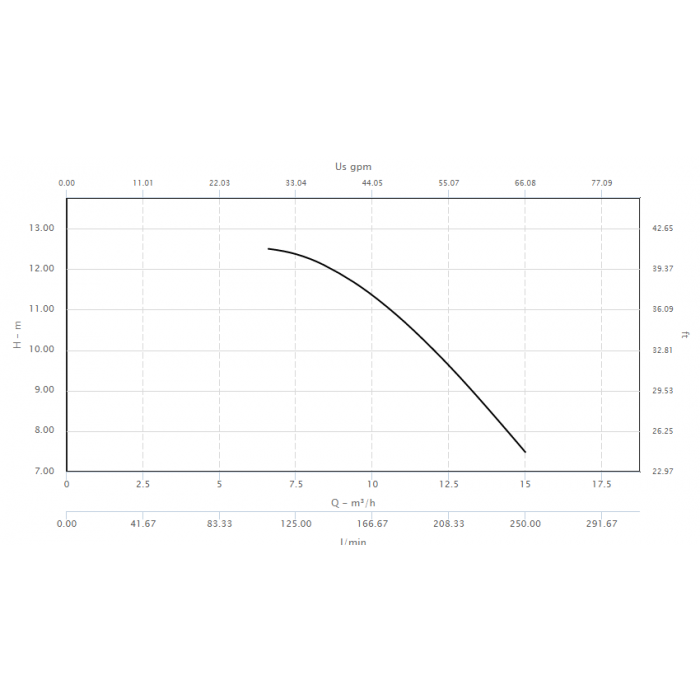

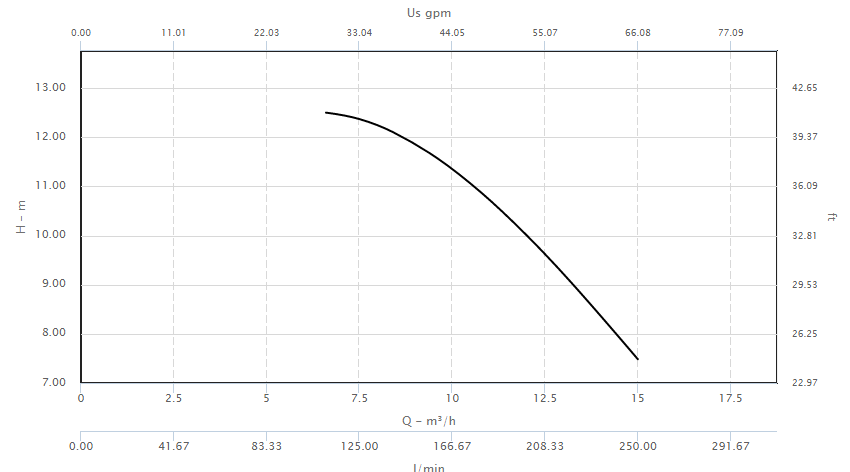

Max Flow 15 m3/hr
Max Head 12.5m
Material Cast Iron
