Calpeda NMM 11/BE End Suction Threaded Pump 240V

MRRP £920.00 + VAT Our price £598.00 (+ VAT) Incl. VAT: £717.60


FREEPHONE 0800 112 3134 if you've seen it cheaper.

Order within
for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

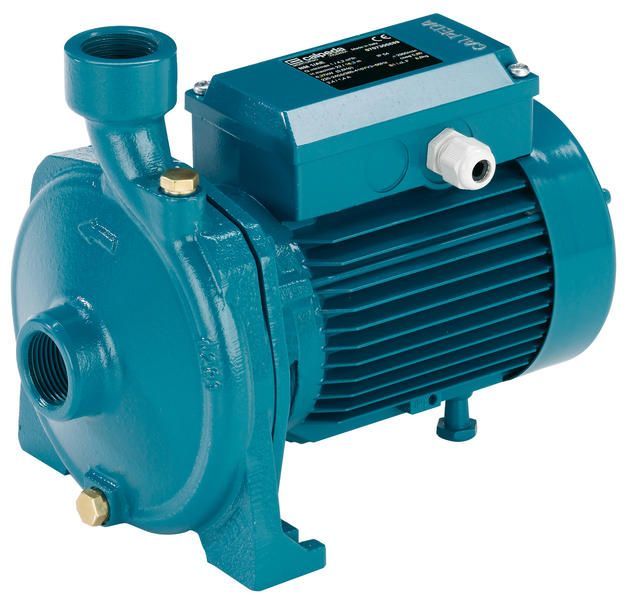

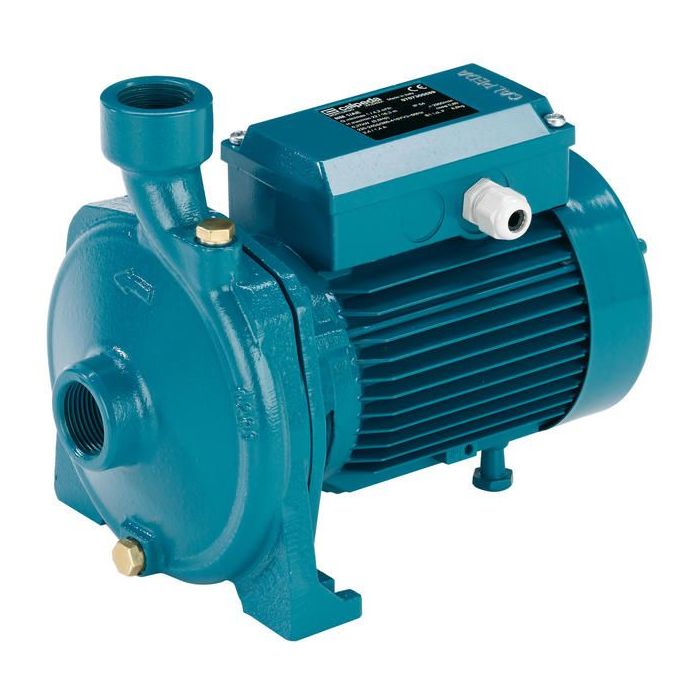

Calpeda NMM 11/BE close coupled, centrifugal end suction pump with screwed (threaded) connection and 1.5kW (2.0HP) 240V 1Ph 50Hz motor - NMM11-BE

Calpeda NM and NMD threaded pump range are close-coupled, centrifugal pumps with electric motor and extended shaft directly connected to the pump.

NM:   single-impeller
NMD:  two back-to-back impellers (with axial thrust balancing).

The NM and NMD threaded pump range are suitable for the following applications:

  • Clean liquids without  non-aggressive abrasives ( solids content up to 0.2%)
  • Mains water supply
  • Heating, air-conditioning, cooling and circulation plants
  • Civil and industrial applications
  • Fire fighting applications
  • Irrigation
More Information
Manufacturer Calpeda
Manufacturers Warranty 1 Year
Weight 24.7 Kg

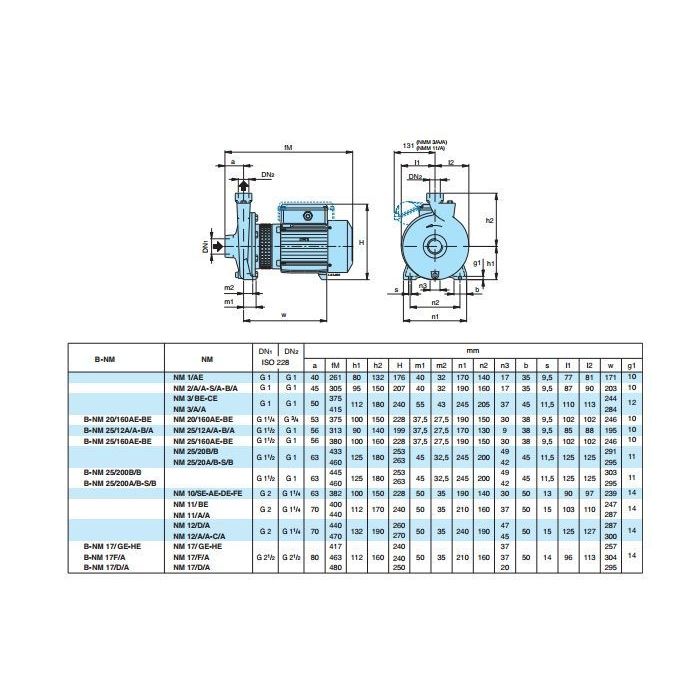

Dimensions 400mm (d) x 210mm (w) x 282mm (h)
Inlet Dimension 2" BSPF
Discharge Dimension 1 1/4" BSPF
Motor Size (kW/W) 1.5 kW
Full Load Current (FLC) 9.2A
Voltage 240V 1Ph 50Hz

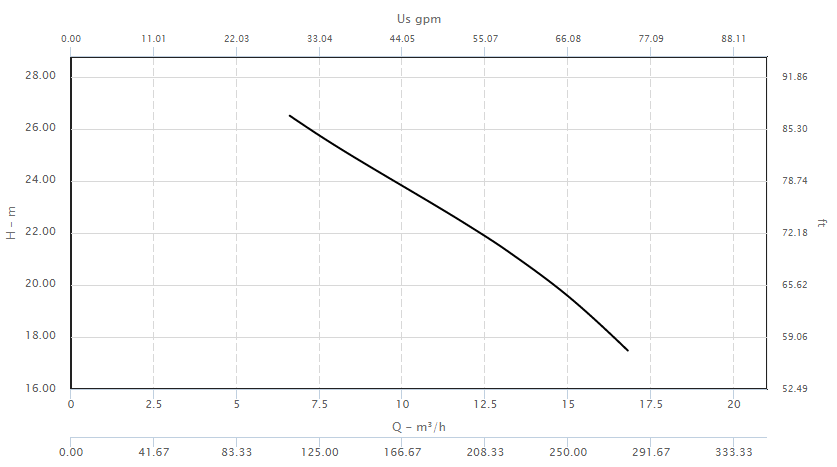

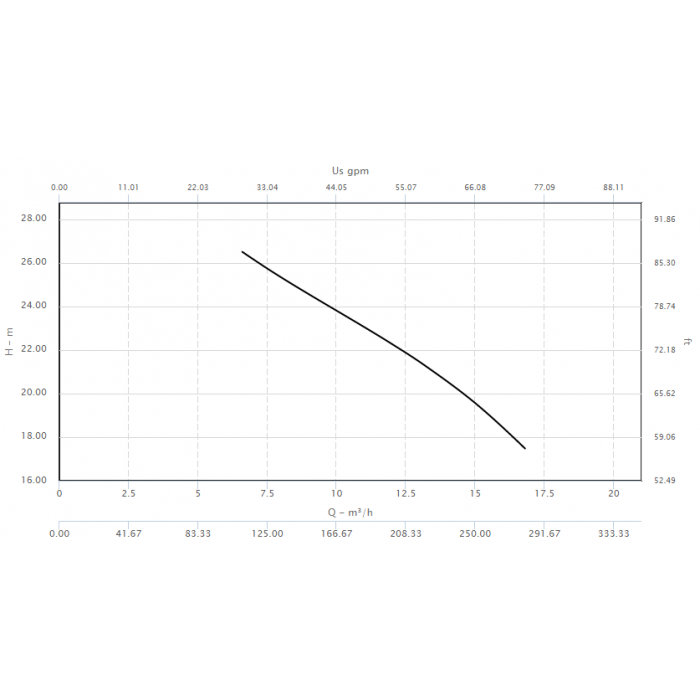

Max Flow 16.8m3/hr
Max Head 26.5m
Max Temperature 90°C
Material Cast Iron
