Calpeda NMD 20/110Z/A close coupled, centrifugal end suction pump with back-to-back impellers and screwed (threaded) connection, and 0.55kW (0.75HP) 415V 3Ph 50Hz motor.
Calpeda NM and NMD threaded pump range are close-coupled, centrifugal pumps with electric motor and extended shaft directly connected to the pump.
NMD: two back-to-back impellers (with axial thrust balancing).
The NM and NMD threaded pump range are suitable for the following applications:
- Clean liquids without non-aggressive abrasives ( solids content up to 0.2%)
- Mains water supply
- Heating, air-conditioning, cooling and circulation plants
- Civil and industrial applications
- Fire fighting applications
|Manufacturers Warranty||1 Year|

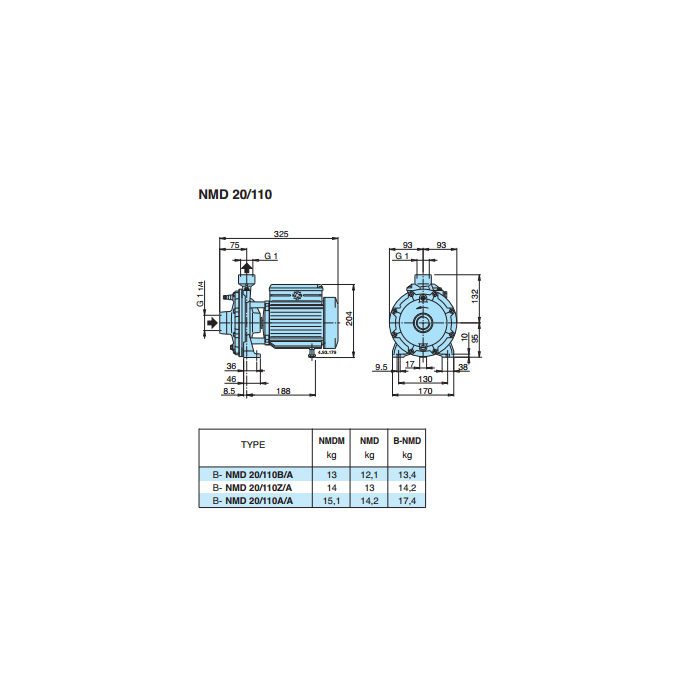

|Dimensions||325mm Deep x 186mm Wide x 227mm High|
|Motor Size (kW/W)||0.55 kW|
|Voltage||415V 3Ph 50Hz|

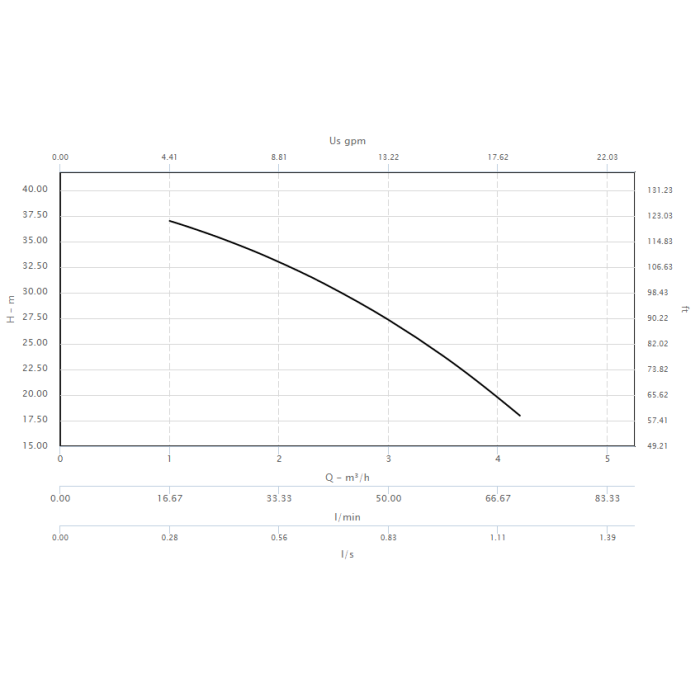

|Max Flow||3.6 m3/hr|
