Calpeda NMD 20/110A/A End Suction Threaded Pump 415V
BEST ONLINE PRICES
FREEPHONE 0800 112 3134 if you've seen it cheaper.
* Available where Guaranteed Stock Icon Appears Below

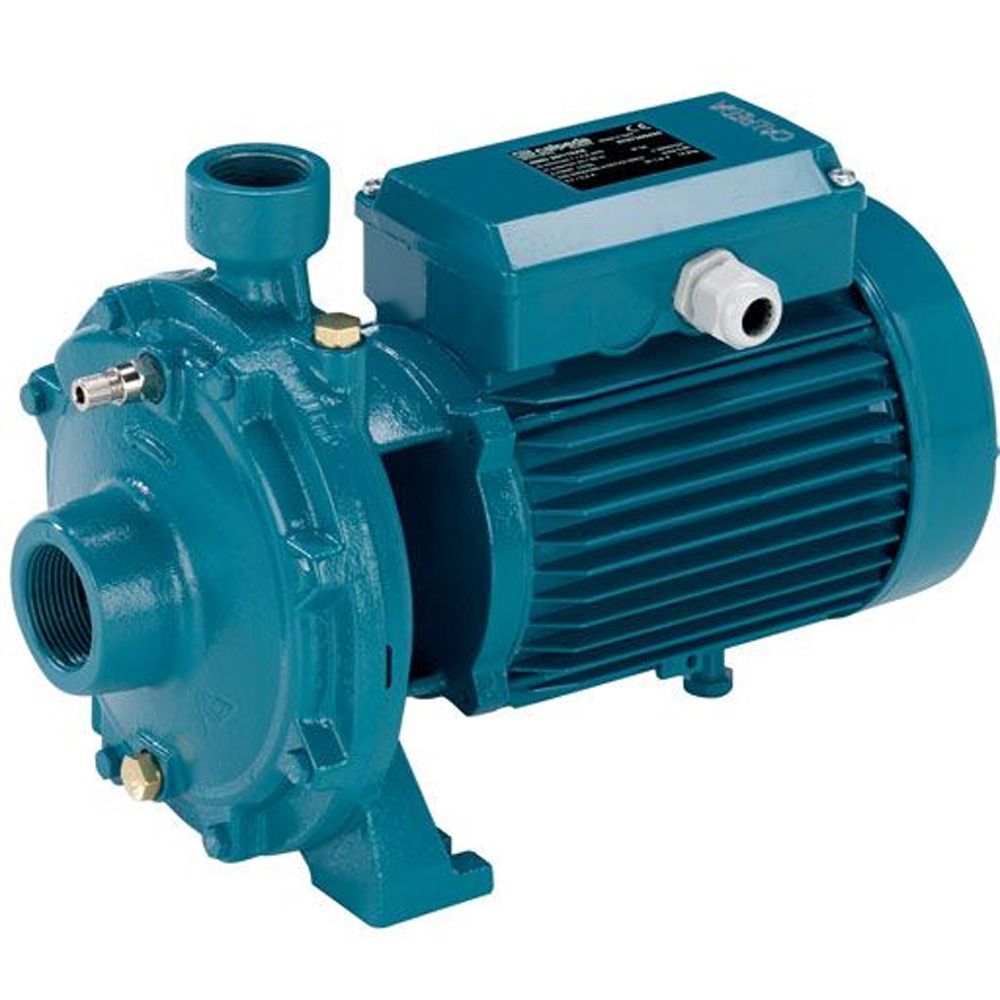

Calpeda NMD 20/110A/A close coupled, centrifugal end suction pump with back-to-back impellers and screwed (threaded) connection, and 0.75kW (1.0HP) 415V 3Ph 50Hz motor - NMD20/110A/A
Calpeda NM and NMD threaded pump range are close-coupled, centrifugal pumps with electric motor and extended shaft directly connected to the pump.
NM: single-impeller
NMD: two back-to-back impellers (with axial thrust balancing).
The NM and NMD threaded pump range are suitable for the following applications:
- Clean liquids without non-aggressive abrasives ( solids content up to 0.2%)
- Mains water supply
- Heating, air-conditioning, cooling and circulation plants
- Civil and industrial applications
- Fire fighting applications
- Irrigation
SKU | NMD20/110A/A |
---|---|
Manufacturer | Calpeda |
Manufacturers Warranty | 1 Year |
Weight | 14.2 Kg |
Dimensions | 325mm (d) x 186mm (w) x 227mm (h) |
Inlet Dimension | 1 1/4" BSPF |
Discharge Dimension | 1" BSPF |
Motor Size (kW/W) | 0.75 kW |
Full Load Current (FLC) | 2.3A |
Voltage | 415V 3Ph 50Hz |
Max Flow | 3.6m3/hr |
Max Head | 43m |
Max Temperature | 90°C |
Material | Cast Iron |
