Calpeda NM 17/F/A close coupled, centrifugal end suction pump with screwed (threaded) connection and 2.2kW (3.0HP) 415V 3Ph 50Hz motor.
Calpeda NM and NMD threaded pump range are close-coupled, centrifugal pumps with electric motor and extended shaft directly connected to the pump.
NMD: two back-to-back impellers (with axial thrust balancing).
The NM and NMD threaded pump range are suitable for the following applications:
- Clean liquids without non-aggressive abrasives ( solids content up to 0.2%)
- Mains water supply
- Heating, air-conditioning, cooling and circulation plants
- Civil and industrial applications
- Fire fighting applications
|Manufacturers Warranty||1 Year|
|Dimensions||417mm Deep x 210mm Wide x 272mm High|
|Motor Size (kW/W)||2.2 kW|
|Voltage||415V 3Ph 50Hz|

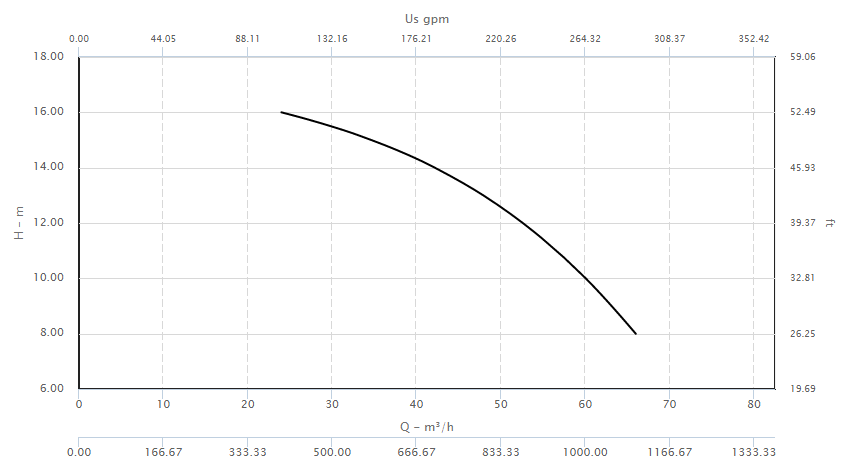

|Max Flow||48 m3/hr|
