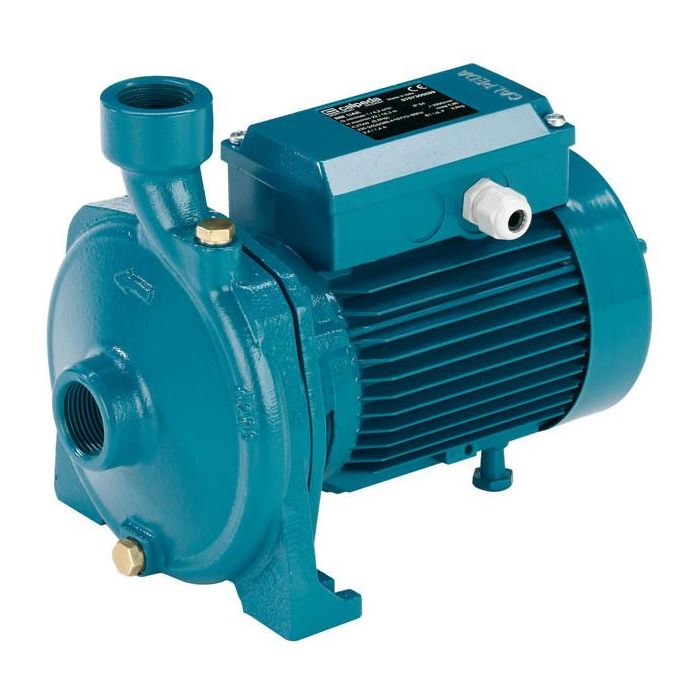

Calpeda NM 17/D/A close coupled, centrifugal end suction pump with screwed (threaded) connection and 3.0kW (4.0HP) 415V 3Ph 50Hz motor
Calpeda NM and NMD threaded pump range are close-coupled, centrifugal pumps with electric motor and extended shaft directly connected to the pump.
NMD: two back-to-back impellers (with axial thrust balancing).
The NM and NMD threaded pump range are suitable for the following applications:
- Clean liquids without non-aggressive abrasives ( solids content up to 0.2%)
- Mains water supply
- Heating, air-conditioning, cooling and circulation plants
- Civil and industrial applications
- Fire fighting applications
|Manufacturers Warranty||1 Year|
|Dimensions||480mm (d) x 210mm (w) x 272mm (h)|
|Inlet Dimension||2 1/2" BSPF|
|Discharge Dimension||2 1/2" BSPF|
|Motor Size (kW/W)||3.0 kW|
|Full Load Current (FLC)||6.6A|
|Voltage||415V 3Ph 50Hz|
