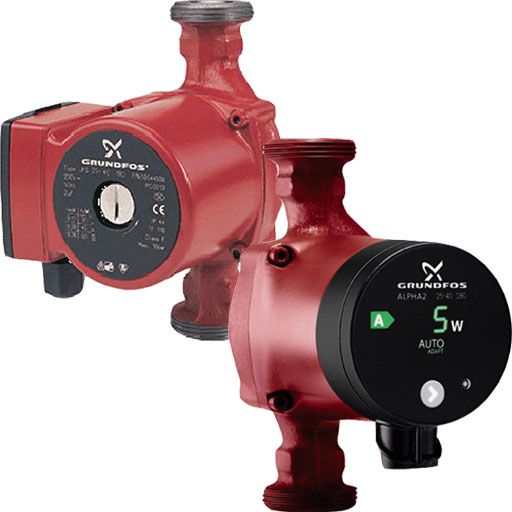

Grundfos UPS 25-60 (180mm) Domestic Circulator Pump 240V replaced with ALPHA2 25-60 (180)

Availability: In stock

MRRP: £301.00 + VAT

Our Price Excl. VAT: £211.00 + VAT Incl. VAT: £253.20


Please note, due to EUP regulations, the Grundfos UPS 25-60 (180) is no longer available, but if you purchase this item you will automatically be upgraded to the Grundfos ALPHA2 25-60 (180) with auto-adapt.

ALPHA2 is the latest and most innovative member of the Grundfos family of high-quality circulators.  Simply install the pump and leave it in the factory setting (Auto-adapt),  ALPHA2 will automatically analyse the heating system, find the optimum setting and continue to adjust its operation to changes in demand. The result is optimum comfort and minimum energy consumption.

The innovative design makes ALPHA2 the most compact Grundfos circulator available. With the electronics integrated in the pump housing, installation in very confined spaces is now possible.

The ALPHA2 25-60 has 180mm port to port dimensions and does not require alteration of pipework or special fittings.

Fittings are not supplied but can be purchased separately.


Pump ModelGrundfos UPS 25-60 (180mm) Domestic Circulator Pump 240V replaced with ALPHA2 25-60 (180)
Product Code (SKU)96281483 /97993201
Pump TypeHeating Circulation
MaterialCast Iron
Voltage240V 1Ph 50Hz
Dimensions130mm high x 155mm wide x 153mm deep
Max. Flow3.1m3/hr
Max. Head6m
Motor Size (kW/W)5-45W
Full Load Current (FLC)0.05-0.38A
Single/TwinSingle Head
