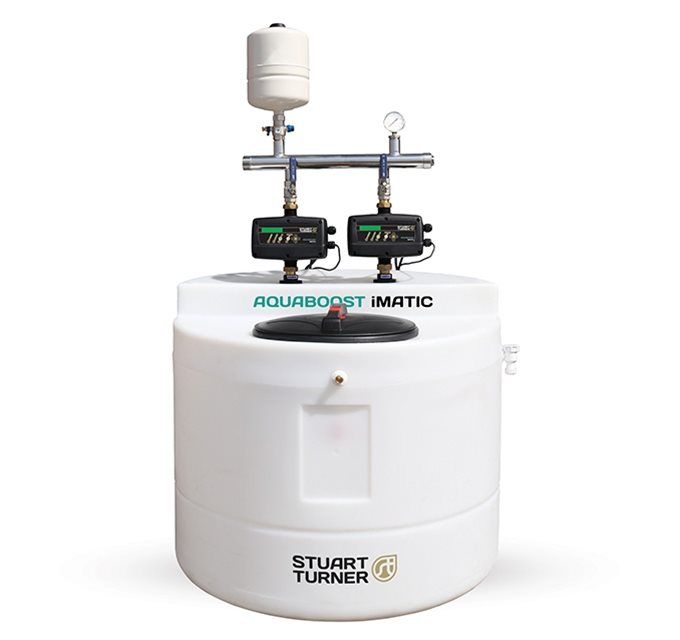

Stuart Turner Aquaboost iMatic 1200 Twin Pump Booster Set

SKU
47361
MRRP £5,997.00 + VAT Our price £3,626.00 (+ VAT) Incl. VAT: £4,351.20
Order within
Hours
Mins
Secs
for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

iMatic Booster System

iMatic 0504 2S-CMT/24 1200



The Aquaboost iMatic range of booster sets features one or two submersible multistage pumps controlled by a dedicated variable speed frequency invertor.

The twin pump 1200 litre tank is fitted with two 0504 stainless steel pumps, capable of delivering flow rates up to 10.0 m³/hour per pump and capable of producing head pressures of up to 6.6 bar.

Pump control mode can be duty/standby or duty/assist.





Key Features
  • Flow rates up to 20.0 m³/h
  • Head pressure up to 6.6 bar
  • Twin 304 stainless steel pumps
  • 1200 litre plastic molded tank, constructed from WRAS approved material
  • Dry run protection
  • Stainless steel / brass discharge fittings
  • Nickel plated WRAS approved ball valves
  • Union fittings on controller
  • WRAS approved 24 litre pressure vessel
  • BMS volt free contacts
More Information
SKU 47361
Manufacturer Stuart Turner
Manufacturers Warranty 2 Years
GTIN 5050400473619
Weight 85.0 Kg
Dimensions 1000mm x 1000mm x 2330mm
Inlet Dimension 1/2" bsp
Discharge Dimension 11/2" bsp
Full Load Current (FLC) 12.8 A
Voltage 240V 1Ph 50Hz
Max Flow 20 m3/hr (10.0 m3/hr each pump)
Max Head 6.6 Bar
