Stuart Turner Aquaboost CH 4-50 PS Centrifugal Pressure Set 240V (F120-50)

SKU
44622
MRRP £1,423.00 + VAT Our price £911.00 (+ VAT) Incl. VAT: £1,093.20
Order within
Hours
Mins
Secs
for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

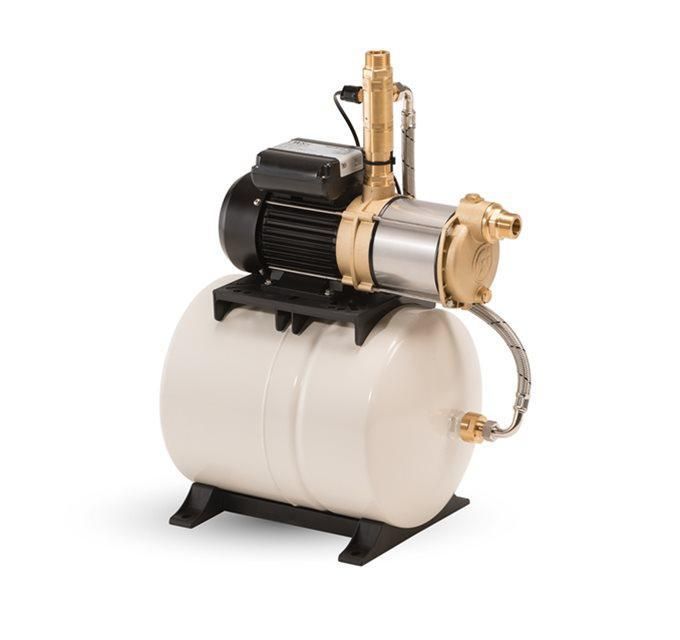

Centrifugal Pressure Set



Designed to meet system demands in larger domestic and light commercial applications. The CH multistage pump is mounted on to a WRAS Approved 24 litre diaphragm tank providing a buffer of pressurised stored water. CH Pressure sets are ideally suited to boosting stored cold water supplies to un-vented hot water cylinders/combination boilers. Supplied with G 1 flexible hoses and adaptors.



Key Features

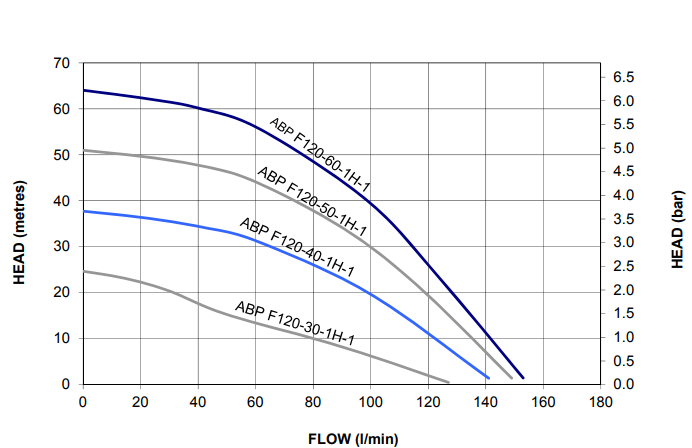

  • Flow rates up to 150 litres per minute and heads up to 51 metres
  • Fully automatic control
  • No pulsing during operation
  • Durable brass and stainless steel construction
  • Multistage centrifugal pump
  • Extended life mechanical seal
  • Quiet operation
  • WRAS Approved Product
  • Continuously rated induction motor
  • Dry run protection
  • Includes 24 litre WRAS Approved diaphragm tank
  • G 1 Flexible hoses included
  • 2 year guarantee
More Information
SKU 44622
Manufacturer Stuart Turner
Manufacturers Warranty 1 Year
GTIN 5050400446224
Weight 18.5 Kg

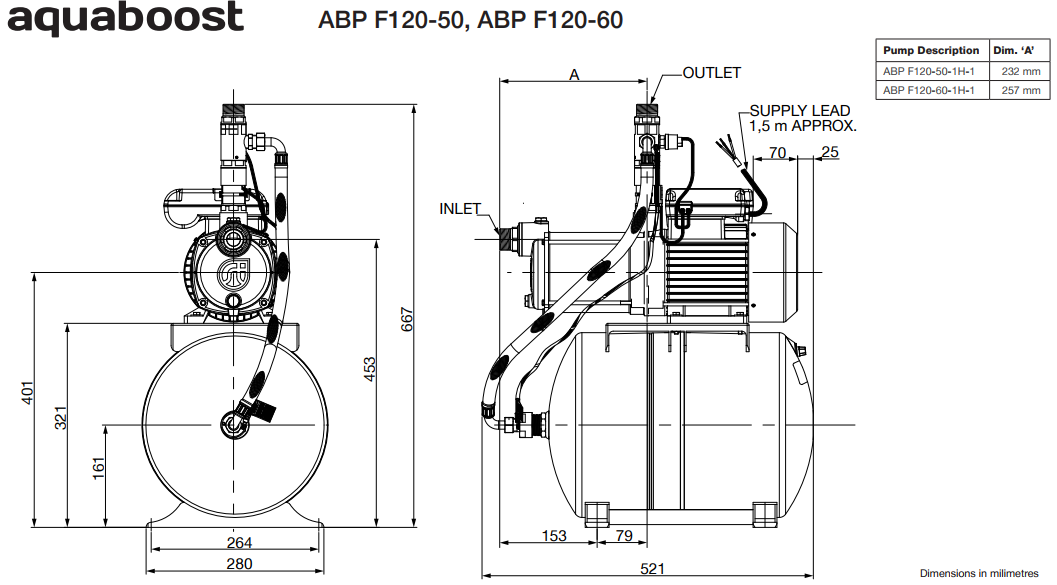

Dimensions 667mm High x 521mm Deep x 280mm Wide
Motor Size (kW/W) 1.65 kW
Full Load Current (FLC) 7.3A
Voltage 240V 1Ph 50Hz
Max Flow 150 l/min
Max Head 49m (4.9 bar)
Max Pressure 4.9 Bar
Material Stainless Steel
Seal Type EPDM / Carbon / Ceramic
Impeller Material Stainless Steel
