Lowara FHS4 125-250/150/P Centrifugal Pump 415V replaced with NSCS 125-250/150

SKU
703321162
MRRP £7,996.00 + VAT Our price £5,597.20 (+ VAT) Incl. VAT: £6,716.64
Order within
Hours
Mins
Secs
for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

Please note this pump is no longer available and has been replaced with the NSCS 125-250/150/P45VCC4 (703741111). This will be sent as a replacement.

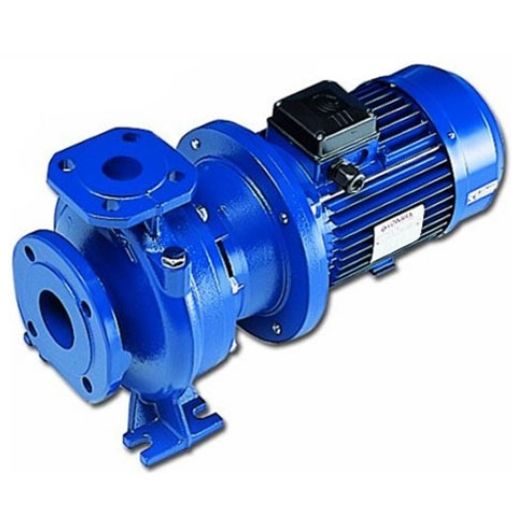

Lowara's range of FH End Suction Centrifugal Pumps have Cast Iron bodies and AISI 316L stainless steel welded impellers.  This range is suitable for pumping hot or cold, mildly aggressive liquids upto a maximum temperature of 85°C (120°C on request).

Certain pumps are available with Screwed connections.  Flanged pumps do not come with flange kit, this is shown as a related item to the specific pump model.

Available models:
FHE Close-coupled with special motor shaft extension.
FHS With stub shaft and standard motor.
FHF With flexible coupling, adapter, base and standard motor in compliance with EN 733 - DIN 24255.

This pump is available with a Bronze Impeller at extra cost, please ring for details.

Models ending with /P are fitted with Lowara's PLM high efficiency motors.

Specifications:

  • Delivery - up to 700 m³/h
  • Head - up to 100 m
  • Power supply - both single and three-phase 50 and 60 Hz
  • Power - from 0.25 kW up to 132 kW
  • Maximum operating pressure - 16 bar
  • Temperature of pumped liquid - from -30 °C to 85°C (120 °C on request)
  • More Information
    SKU 703321162
    Manufacturer Lowara
    Manufacturers Warranty 2 Years
    Weight 237.0 Kg
    Dimensions 860mm Long x 605mm High x 493mm Wide
    Motor Size (kW/W) 15.0kW
    Full Load Current (FLC) 30.4A
    Voltage 415V 3Ph 50Hz
    Max Flow 300m3/hr
    Max Head 23.2m
    Material Cast Iron
