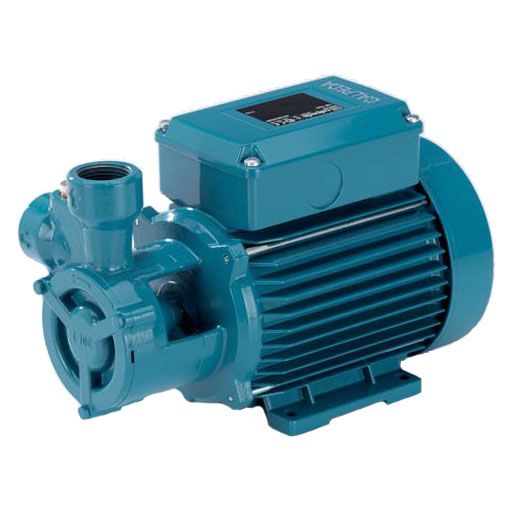

Calpeda TM 76E Peripheral Booster Pump 240V

SKU
TM76E
MRRP £623.00 + VAT Our price £437.00 (+ VAT) Incl. VAT: £524.40
Order within
Hours
Mins
Secs
for next day delivery i

Calpeda T close-coupled peripheral pumps (regenerative) with turbine impellers.

T/TP: version with pump casing and lantern bracket in cast iron.

B-T/B-TP: version with pump casing and lantern bracket in bronze.



Suitable for pumping clean liquids without abrasives, without suspended solids,non-explosive, non-aggressive for the pump materials and increasing network pressure.

These pumps are well suited to being mounted in cooling and air-conditioning machines and equipment and for circulation and boiler feed.



Operating conditions:

  • Liquid temperature -10°C to +90°C
  • Ambient temperature up to 40°C
  • Total suction lift up to 7m
  • 1 1/4" Suction and Discharge Ports (screwed connection)
  • Suitable for continuous duty
More Information
SKU TM76E
Manufacturer Calpeda
Manufacturers Warranty 1 Year
Weight 18.4 Kg
Dimensions 192mm High x 155mm Wide x 338mm Deep
Motor Size (kW/W) 1.1 kW
Voltage 240V 1Ph 50Hz
Max Flow 3.6 m3/hr
Max Head 70m
Material Cast Iron
