Calpeda TM 70/A Peripheral Booster Pump 240V

MRRP £430.00 + VAT Our price £280.00 (+ VAT) Incl. VAT: £336.00
Order within
for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

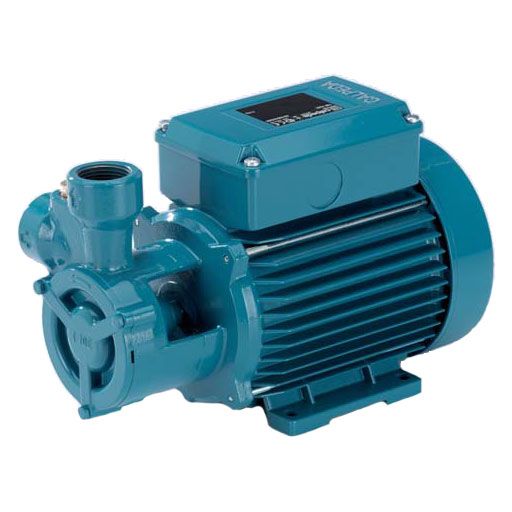

Calpeda TM 70/A Peripheral Booster Pump 240V - TM70-A

Calpeda T close-coupled peripheral pumps (regenerative) with turbine impellers.

T/TP: version with pump casing and lantern bracket in cast iron.

B-T/B-TP: version with pump casing and lantern bracket in bronze.


Suitable for pumping clean liquids without abrasives, without suspended solids,non-explosive, non-aggressive for the pump materials and increasing network pressure.

These pumps are well suited to being mounted in cooling and air-conditioning machines and equipment and for circulation and boiler feed.


Operating conditions:

  • Liquid temperature -10°C to +90°C
  • Ambient temperature up to 40°C
  • Total suction lift up to 7m
  • 1" Suction and Discharge Ports (screwed connection)
  • Suitable for continuous duty
More Information
Manufacturer Calpeda
Manufacturers Warranty 1 Year
Weight 11.2 Kg
Dimensions 182mm High x 134mm Wide x 278mm Deep
Motor Size (kW/W) 0.75 kW
Voltage 240V 1Ph 50Hz
Max Flow 3.6 m3/hr
Max Head 70m
Material Cast Iron
