Calpeda NMDM 20/140AE close coupled, centrifugal end suction pump with back-to-back impellers and screwed (threaded) connection, and 1.5kW (2.0HP) 240V 1Ph 50Hz motor
Calpeda NM and NMD threaded pump range are close-coupled, centrifugal pumps with electric motor and extended shaft directly connected to the pump.
NMD: two back-to-back impellers (with axial thrust balancing).
The NM and NMD threaded pump range are suitable for the following applications:
- Clean liquids without non-aggressive abrasives ( solids content up to 0.2%)
- Mains water supply
- Heating, air-conditioning, cooling and circulation plants
- Civil and industrial applications
- Fire fighting applications
|Manufacturers Warranty||1 Year|

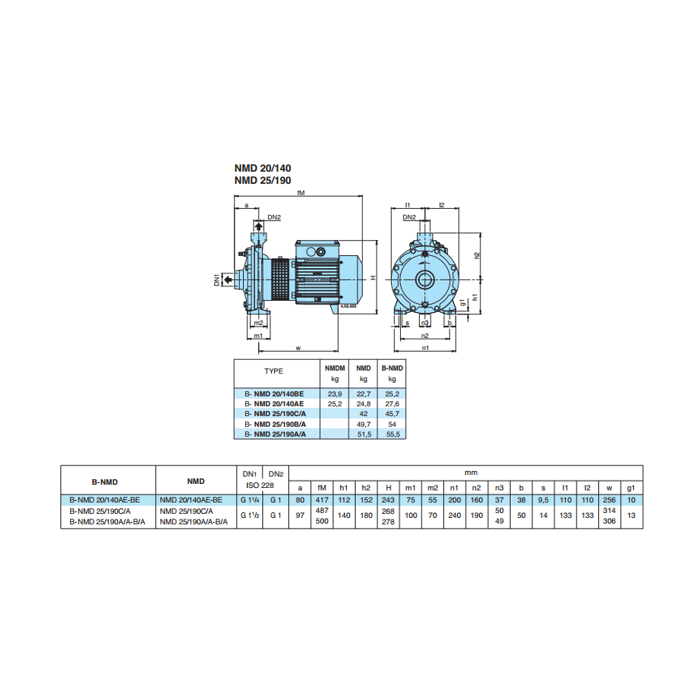

|Dimensions||417mm (d) x 360mm (w) x 243mm (h)|
|Inlet Dimension||1 1/4" BSPF|
|Discharge Dimension||1" BSPF|
|Motor Size (kW/W)||1.5 kW|
|Full Load Current (FLC)||9.2A|
|Voltage||240V 1Ph 50Hz|
