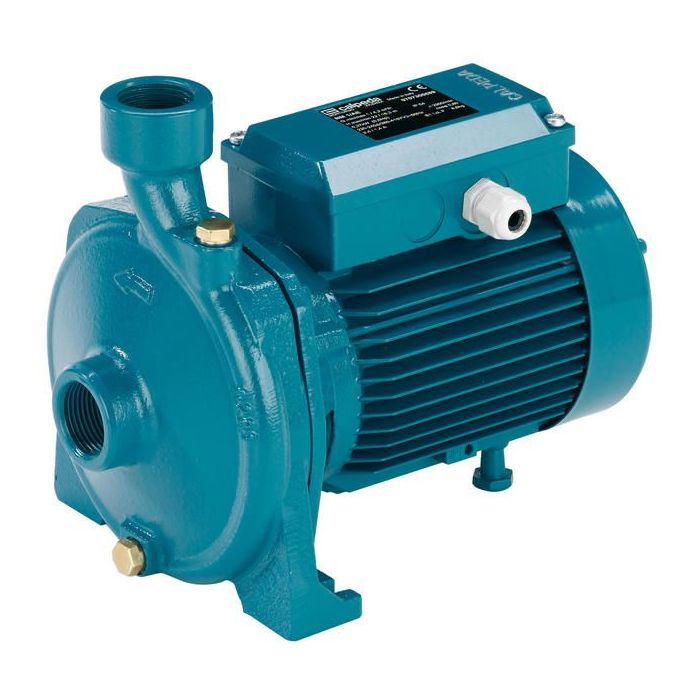

Calpeda NM 25/12B/A close coupled, centrifugal end suction pump with screwed (threaded) connection and 0.55kW (0.75HP) 415V 3Ph 50Hz motor
Calpeda NM and NMD threaded pump range are close-coupled, centrifugal pumps with electric motor and extended shaft directly connected to the pump.
NMD: two back-to-back impellers (with axial thrust balancing).
The NM and NMD threaded pump range are suitable for the following applications:
- Clean liquids without non-aggressive abrasives ( solids content up to 0.2%)
- Mains water supply
- Heating, air-conditioning, cooling and circulation plants
- Civil and industrial applications
- Fire fighting applications
|Manufacturers Warranty||1 Year|

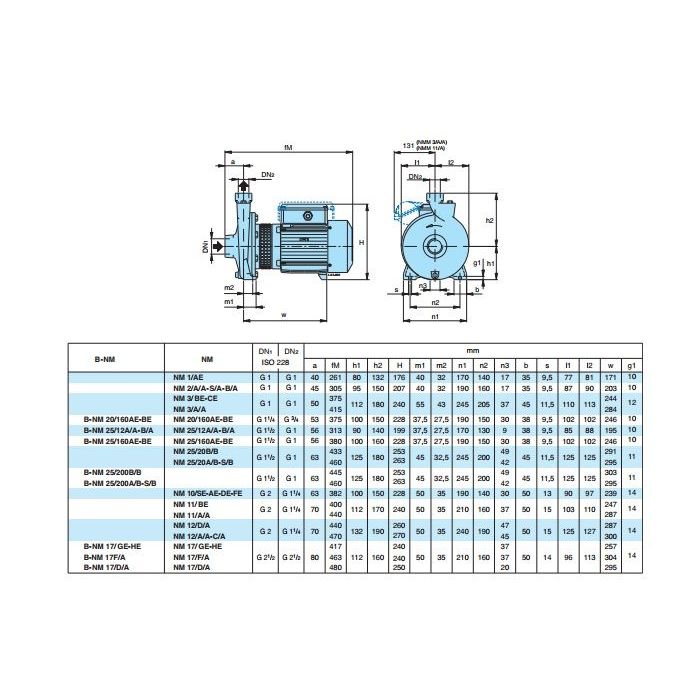

|Dimensions||313mm (d) x 170mm (w) x 230mm (h)|
|Inlet Dimension||1 1/2" BSPF|
|Discharge Dimension||1" BSPF|
|Motor Size (kW/W)||0.55 kW|
|Full Load Current (FLC)||1.7A|
|Voltage||415V 3Ph 50Hz|
