Calpeda NM 12/A/A End Suction Threaded Pump 415V

SKU
NM12/A/A
MRRP £1,252.00 + VAT Our price £814.00 (+ VAT) Incl. VAT: £976.80

BEST ONLINE PRICES

FREEPHONE 0800 112 3134 if you've seen it cheaper.

Order within
Hours
Mins
Secs
for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

Calpeda NM 12/A/A close coupled, centrifugal end suction pump with screwed (threaded) connection and 4.0kW (5.5HP) 415V 3Ph 50Hz motor - NM12/A/A

Calpeda NM and NMD threaded pump range are close-coupled, centrifugal pumps with electric motor and extended shaft directly connected to the pump.


NM:   single-impeller
NMD:  two back-to-back impellers (with axial thrust balancing).

The NM and NMD threaded pump range are suitable for the following applications:

  • Clean liquids without  non-aggressive abrasives ( solids content up to 0.2%)
  • Mains water supply
  • Heating, air-conditioning, cooling and circulation plants
  • Civil and industrial applications
  • Fire fighting applications
  • Irrigation
More Information
SKU NM12/A/A
Manufacturer Calpeda
Manufacturers Warranty 1 Year
Weight 43.0 Kg

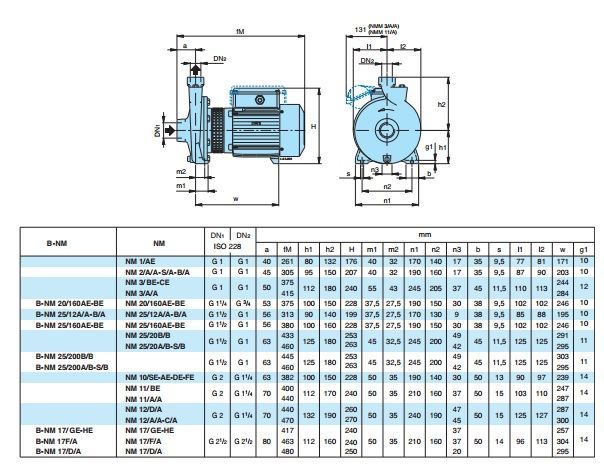

Dimensions 470mm (d) x 240mm (w) x 322mm (h)
Inlet Dimension 2" BSPF
Discharge Dimension 1 1/4" BSPF
Motor Size (kW/W) 4.0 kW
Full Load Current (FLC) 9.6A
Voltage 415V 3Ph 50Hz

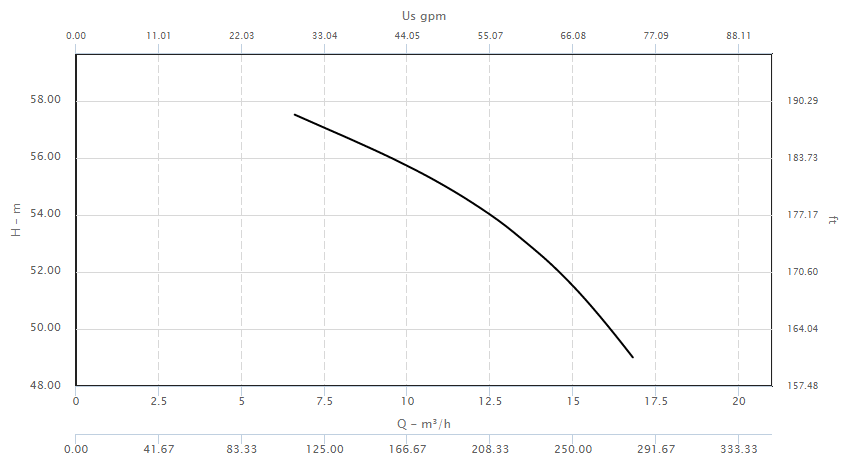

Max Flow 15m3/hr
Max Head 57.5m
Max Temperature 90°C
Material Cast Iron
