TPED 32-380/2 Series 1000 3kW Single Stage Twin Head 2 Pole Variable Speed In Line 415v (Managers Special Price)

SKU
99114598
MRRP £8,052.00 + VAT Our price £3,859.00 (+ VAT) Incl. VAT: £4,630.80
Order within
Hours
Mins
Secs
for next day delivery i

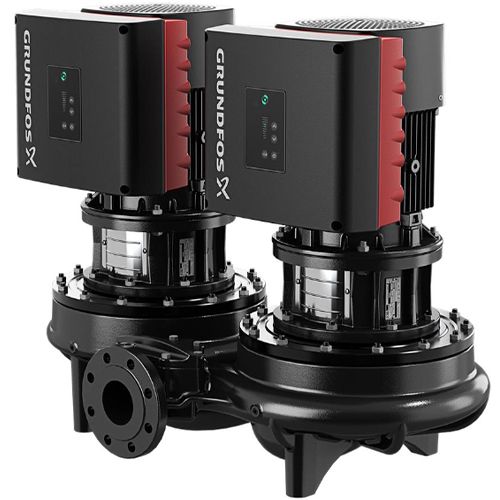

Grundfos TPED 1000 32-380/2 A F A BQQE Single Stage Twin Head In-Line Pump with 2 Pole 415V 3Ph 50Hz, 3kW Motor and flanged pump connections.

The Grundfos TPE Series 1000 Cast Iron Pump Complete With 2 Poles Variable Speed Electric Motor

Single-stage centrifugal in-line twin-head pump:

  • neck rings and impeller made of cast iron
  • cataphoresis treatment
  • shell coupling
  • top-pull-out principle for easy maintenance
  • optimized hydraulics
  • in-line design with opposite suction and discharge ports enabling mounting in pipework or on a concrete foundation
  • corrosion resistant maintenance-free mechanical shaft seal.
  • 32mm flanged connection
  • Optional flange sets available, see accessories below for options.

IMAGE FOR ILLUSTRATION PURPOSES ONLY.

Delivery on this Pump is from stock.

More Information
SKU 99114598
Manufacturer Grundfos
Manufacturers Warranty 2 Years
GTIN 5712607032234
Weight 137.0 Kg
Dimensions 616mm (h) x 340mm (w) x 517mm (d)
Connection Type 32mm Flanged
Motor Size (kW/W) 3 kW
Full Load Current (FLC) 5.80-4.80 A
Voltage 415V 3Ph 50Hz
RPM 2910rpm
Max Flow 21m3/hr
Max Head 38m
Max Temperature 120 degrees C
Material Cast Iron
Impeller Material Cast Iron
