TPE3 50-120 S Single Stage Single Head Stainless Steel Variable Speed In Line With DP+T Sensor 0.55kW 415V

SKU
98416719
MRRP £7,051.00 + VAT Our price £4,090.00 (+ VAT) Incl. VAT: £4,908.00
Order within
Hours
Mins
Secs
for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

Grundfos TPE3 50-120-S A F I BQQE Single Stage Single Head Stainless Steel for Hot Water Service In-Line Pump with Variable Speed High Efficiency Motor and Built In DP+T Sensor 415V 3Ph 50Hz, 0.55kW Motor and flanged pump connections.

Single-stage, close-coupled, volute pump with in-line suction and discharge ports of identical diameter.

  • neck rings and impeller made of composite
  • The pump is of the top-pull-out design, i.e. the power head (motor, pump head and impeller) can be removed for maintenance or service while the pump housing remains in the pipework.
  • The pump is fitted with an unbalanced rubber bellows seal. The shaft seal is according to EN 12756.
  • The pump is fitted with a fan-cooled, permanent-magnet asynchronous motor. The motor efficiency is classified as IE5 in accordance with IEC 60034-30-2. The motor includes a frequency converter and PI controller in the motor terminal box. This enables continuously variable control of the motor speed, which again enables adaptation of the performance to a given requirement.
  • The pump is fitted with a combined temperature- and differential pressure sensor.
  • corrosion resistant maintenance-free mechanical shaft seal.
  • 50mm flanged connection

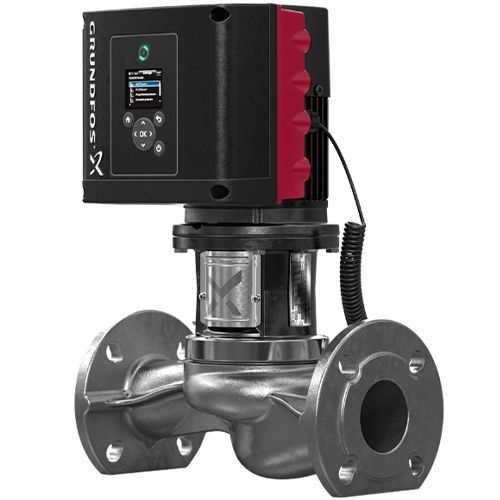

IMAGE FOR ILLUSTRATION PURPOSES ONLY.

More Information
SKU 98416719
Manufacturer Grundfos
Manufacturers Warranty 2 Years
GTIN 5711494654918
Weight 34.8 Kg
Dimensions 489mm (h) x 280mm (w) x 249mm (d)
Connection Type 50mm Flanged
Motor Size (kW/W) 0.55 kW
Full Load Current (FLC) 1.30 A
Voltage 415V 3Ph 50Hz
RPM 3430rpm
Max Flow 38m3/hr
Max Head 12m
Max Temperature 120 degrees C
Material Stainless Steel
Impeller Material Composite
