TPD 40-100/4 A F A BQQE 0.55kW Single Stage Twin Head In Line 4 Pole 240v

MRRP £3,225.00 + VAT Our price £1,935.00 (+ VAT) Incl. VAT: £2,322.00
Order within
for next day delivery i

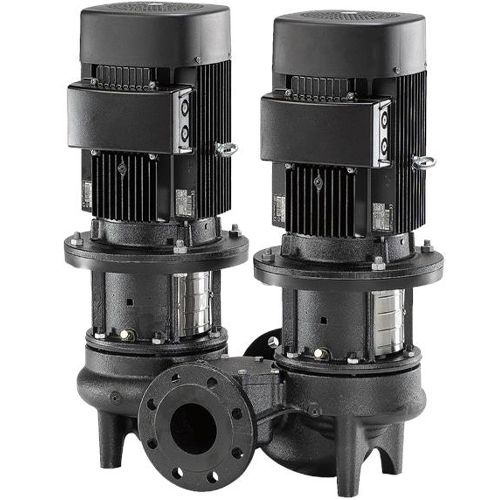

Grundfos TPD 40-100/4 A F A BQQE Single Stage Twin Head In-Line Pump with 4 Pole 240V 1Ph 50Hz, 0.55kW Motor and flanged pump connections.

Single-stage centrifugal in-line twin-head pump:

  • neck rings and impeller made of stainless steel
  • cataphoresis treatment
  • shell coupling
  • top-pull-out principle for easy maintenance
  • optimized hydraulics
  • in-line design with opposite suction and discharge ports enabling mounting in pipework or on a concrete foundation
  • corrosion resistant maintenance-free mechanical shaft seal.
  • 40mm flanged


Delivery on this Pump is 3 weeks.

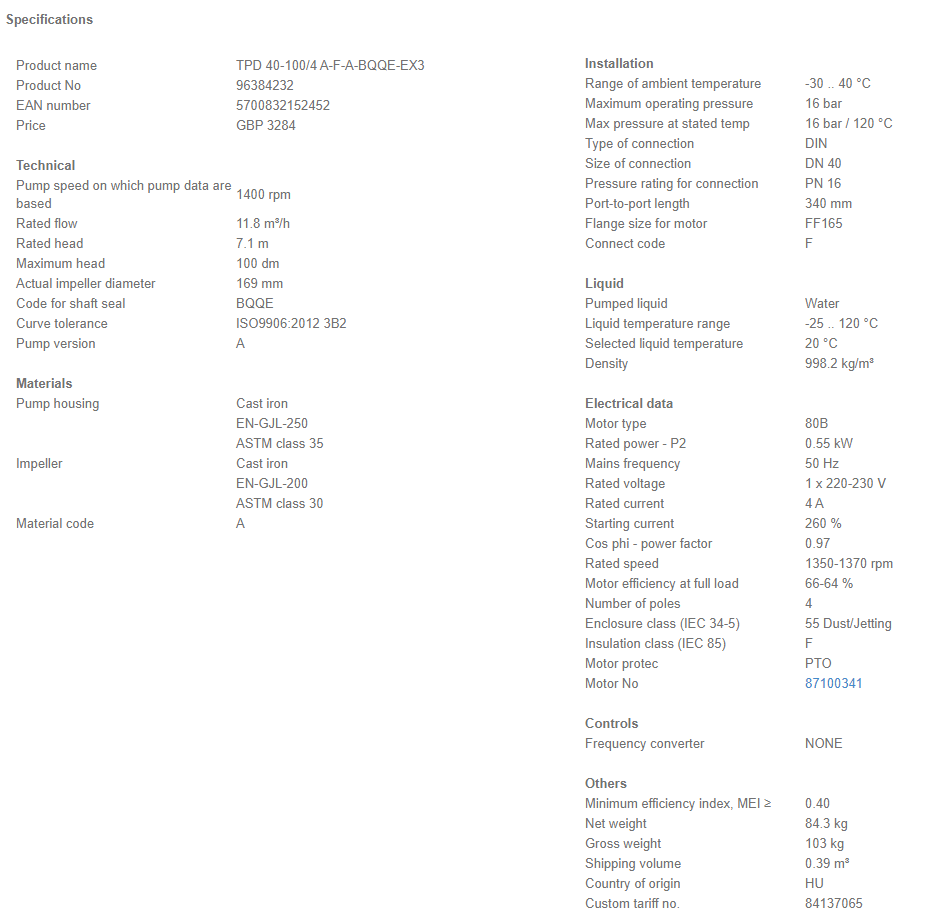

More Information
SKU 96384232
Manufacturer Grundfos
Manufacturers Warranty 2 Years
GTIN 5700832152452
Weight 101.0 Kg

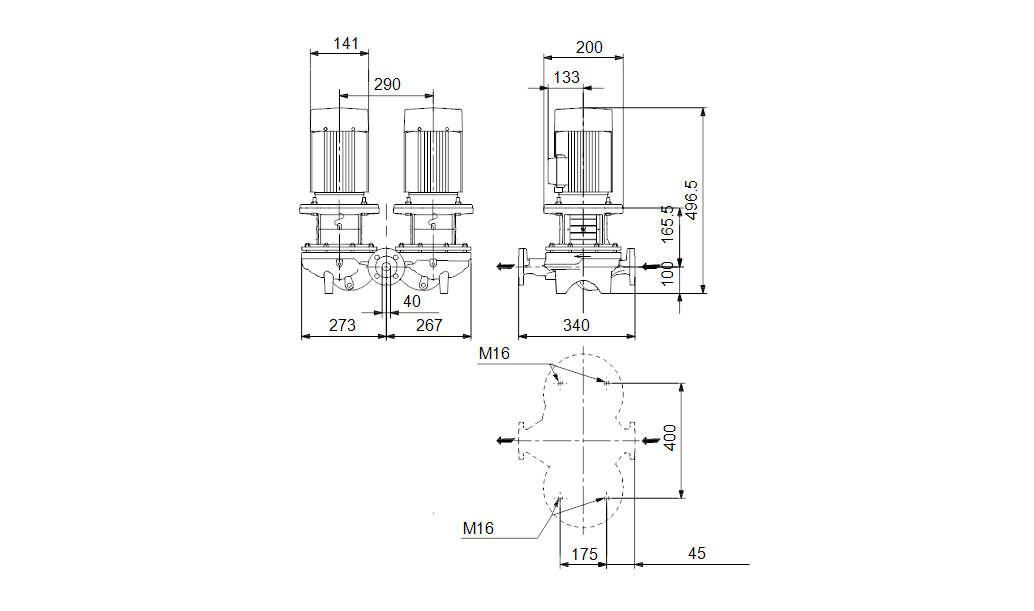

Dimensions 497mm (h) x 540mm (w) x 340mm (d)
Connection Type 40mm Flanged
Motor Size (kW/W) 2 x 0.55 kW
Full Load Current (FLC) 4 A
Voltage 240V 1Ph 50Hz
RPM 1400rpm
Max Flow 16m3/hr
Max Head 10m
temperature 120 degrees C
Material Cast Iron
Impeller Material Cast Iron
