TP 40-120/2 B Single Stage Single Head Bronze for Hot Water In Line 0.37kW 2 Pole 240V

SKU
98957964
MRRP £3,353.00 + VAT Our price £1,945.00 (+ VAT) Incl. VAT: £2,334.00
Order within
Hours
Mins
Secs
for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

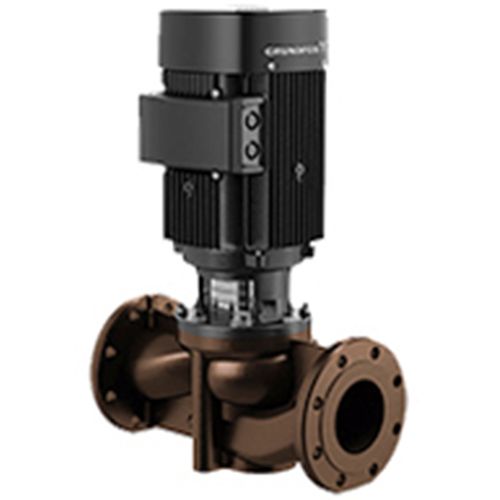

Grundfos TP 40-120/2 B A F Z BQQE Single Stage Single Head Bronze for Hot Water Service In-Line Pump with 2 Pole 240V 1Ph 50Hz, 0.37kW Motor and flanged pump connections.

  • Single-stage, close-coupled, volute pump with in-line suction and discharge ports of identical diameter.
  • Suitable for heating systems, air conditioning and cooling systems, domestic water systems, ground-source heat pump systems and solar heating systems.
  • Neck rings and impeller made of stainless steel.
  • The pump is of the top-pull-out design, i.e. the power head (motor, pump head and impeller) can be removed for maintenance or service while the pump housing remains in the pipework.
  • The pump is fitted with an unbalanced rubber bellows seal. The shaft seal is according to EN 12756.
  • The pump is fitted with a fan-cooled asynchronous motor.
  • Corrosion resistant maintenance-free mechanical shaft seal.
  • 40mm flanged connection.

IMAGE FOR ILLUSTRATION PURPOSES ONLY.

More Information
SKU 98957964
Manufacturer Grundfos
Manufacturers Warranty 2 Years
GTIN 5712604244319
Weight 28.4 Kg
Dimensions 387mm (h) x 250mm (w) x 150mm (d)
Connection Type 40mm Flanged
Motor Size (kW/W) 0.37 kW
Full Load Current (FLC) 2.95/2.70 A
Voltage 240V 1Ph 50Hz
RPM 2850rpm
Max Flow 17.5m3/hr
Max Head 12m
Max Temperature 120 degrees C
Material Bronze
Impeller Material Stainless Steel
