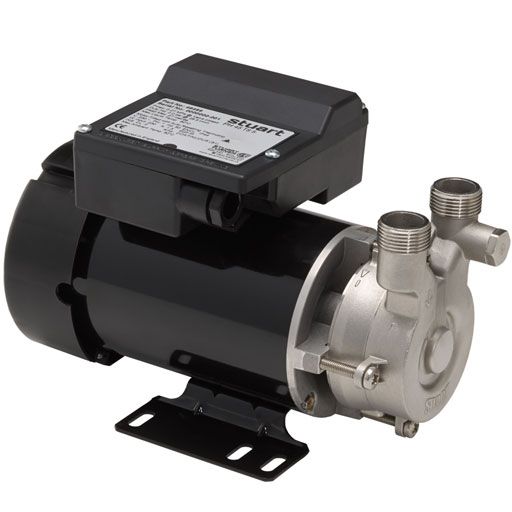

Stuart Turner PH 45 TS S Stainless Steel Peripheral Booster Pump (SS Impeller - Vit/Car/Sil Seals) 240V

SKU
46629
MRRP £744.00 + VAT Our price £477.00 (+ VAT) Incl. VAT: £572.40
Order within
Hours
Mins
Secs
for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

The PH 45 TS S pump body assembly and impeller are manufactured using cast 316 stainless steel with all other exposed components being made of stainless steel or other non-ferrous materials.


Designed for continuous use, the stainless steel peripheral range is ideal for handling non-abrasive liquids and is developed specifically for beer, lager or cider  dispense. Also used for pumping demineralised water.

Seal arrangements for the PH 45 TS S pumps are:

  • EPDM/PTFE/Al. Oxide
  • Viton/Carbon/Silicone


Features:

  • Stainless steel components
  • Seal options
  • Performance adjustment possible

This pump has Viton/Carbon/Silicone seals, G 3/4" male inlet/outlet connections.

The Stuart Turner commercial range of pumps have a 1 year warranty.

More Information
SKU 46629
Manufacturer Stuart Turner
Manufacturers Warranty 2 Years
GTIN 5050400466291
Weight 6.5 Kg

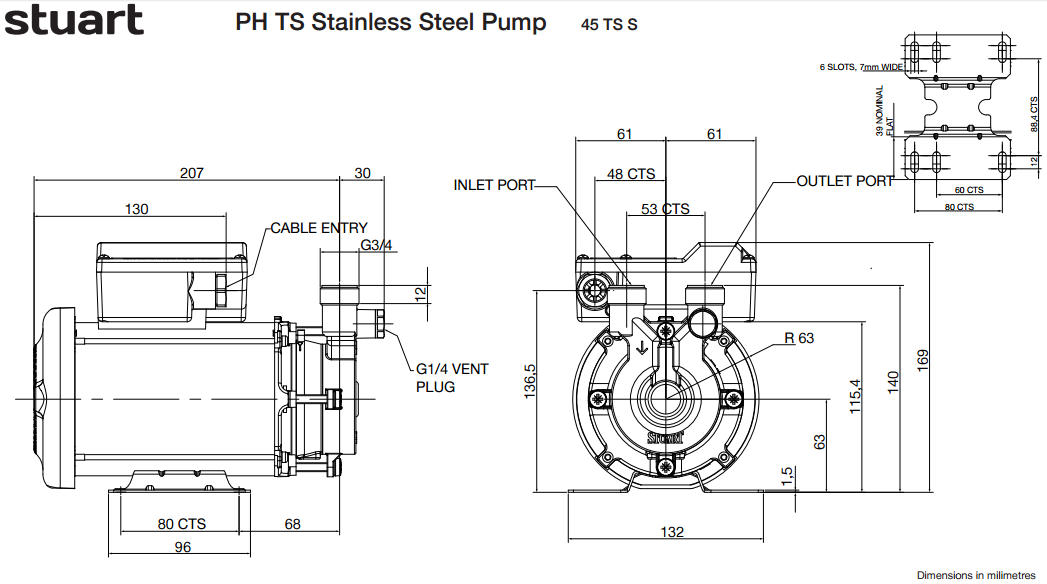

Dimensions 166mm High x 130mm Wide x 249mm Deep
Motor Size (kW/W) 0.52kW
Full Load Current (FLC) 2.4A
Voltage 240V 1Ph 50Hz

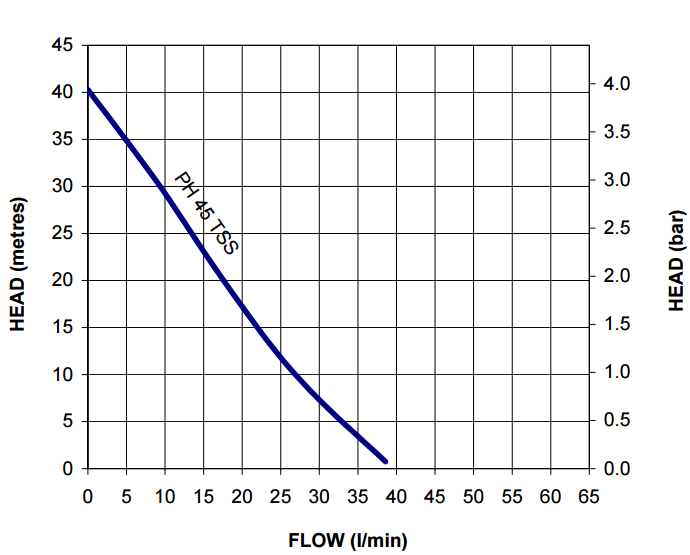

Max Flow 40 l/min
Max Head 40m
Max Pressure 600 kPa (6 bar)
Material Stainless Steel
Seal Type Vit/Car/Sil
Impeller Material Stainless Steel
