Stuart Turner PH 45 ES Brass Peripheral Booster Pump (Brass Impeller - EPDM/PTFE/Al.Oxide Seals) 240V
* Available where Guaranteed Stock Icon Appears Below
The PH ES range of peripheral pumps with horizontal suction and vertical delivery are designed for continuous operation at 2.5 l/min and above, and offer a number of seal and motor options to meet your requirements. A vertical suction range (ES range) is also available.
The range of PH ES peripheral pumps is designed to pump clean, fresh water. Other clean, non aggressive, non explosive liquids with similar characteristics to water may be pumped. The PH ES range can be used for pressure boosting, fluid transfer and distribution. They are suitable for flooded suction applications. Alternatively a maximum suction lift of 4.6 m is permitted when using a Stuart footvalve/strainer.
Seal arrangements for PH 35 ES/ 45 ES are:
- EPDM/PTFE/Al.Oxide
- Viton/Carbon/Silicone
This pump has EPDM / PTFE / Al. Oxide seals and G 1" female screwed inlet/outlet connections.
The Stuart Turner commercial range of pumps have a 1 year warranty.
| SKU | 46564 |
|---|---|
| Manufacturer | Stuart Turner |
| Manufacturers Warranty | 2 Years |
| GTIN | 5050400465645 |
| Weight | 6.5 Kg |
| Dimensions | 166mm High x 130mm Wide x 220mm Deep |
| Motor Size (kW/W) | 0.66kW |
| Full Load Current (FLC) | 2.9A |
| Voltage | 240V 1Ph 50Hz |

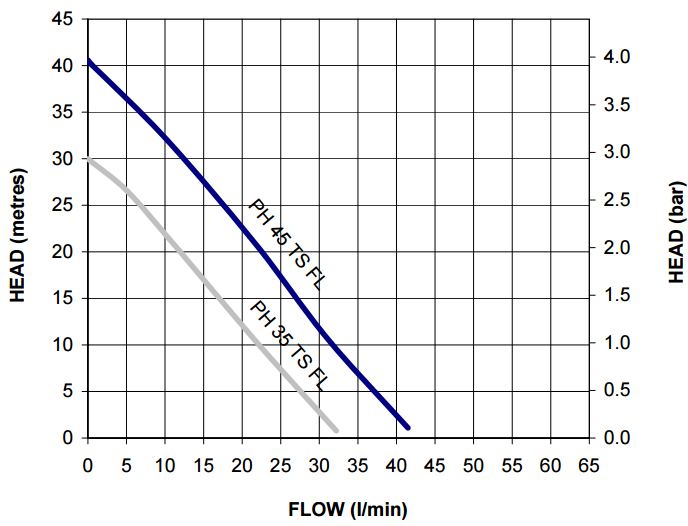

| Max Flow | 40 l/min |
| Max Head | 42m |
| Max Pressure | 600 kPa (6 bar) |
| Material | Brass |
| Seal Type | EPDM/PTFE/Al.Oxide |
| Impeller Material | Brass |
