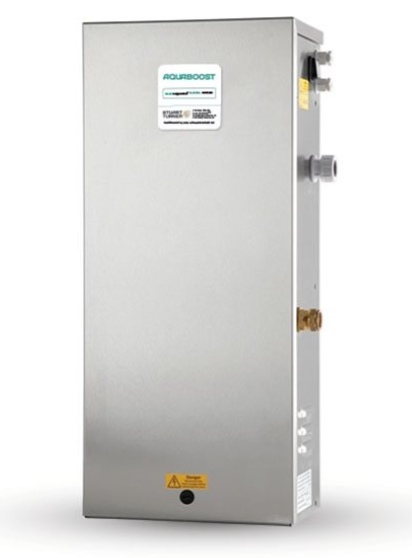

Stuart Turner Aquaboost Aquabreak AB5 Booster Set 240v
* Available where Guaranteed Stock Icon Appears Below
Stuart Turner Aquaboost Aquabreak AB5 Booster Set 240v
The AQUABREAK AB5 Cat 5 booster set is a complete, all-in-one unit, single outlet booster set incorporating single pump, pressure sensor, controller, control vessel, non-return valve and a 5 litre (nom) break tank fitted with a 1/2” solenoid valve and strainer.
The electronic controller ensures that the pump starts automatically when water is consumed and stops automatically when the consumption ceases. In addition the controller protects the pump in case of faults.
Features:
- boosts cold water mains supply to 4.5 bar
- automatic pump operation via electronic controller
- back flow prevention to fluid catergory 5
- pump dry running/no water protection
- fully packaged for simple wall mount installation
- flow rates up to 26 l/min
- 5 litre (nominal) break tank
- simple installation and set up
- durable stainless steel enclosure
Applications:
- boosting cold mains water pressure and flow in light commercial applications
- boosting cold mains water pressure and flow in laboratories, stables, kennels, waste bin stores and wash downstations
| SKU | 62006 |
|---|---|
| Manufacturer | Stuart Turner |
| Manufacturers Warranty | 2 Years |
| Weight | 12.5 Kg |

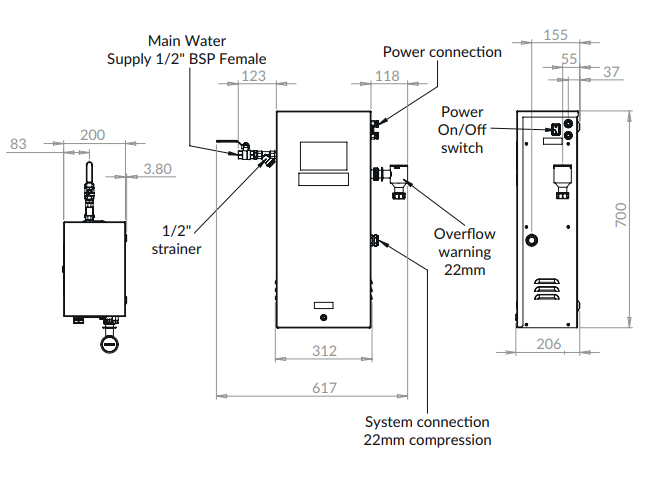

| Dimensions | 700mm (h) x 312mm (w) x 206mm (d) |
| Connection Type | 1/2 Inch BSP Female |
| Motor Size (kW/W) | 0.555kW |
| Full Load Current (FLC) | 6 A |
| Voltage | 240V 1Ph 50Hz |

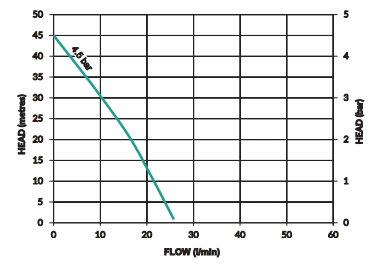

| Max Flow | 26 l/min |
| Max Head | 45m |
| Max Pressure | 4.5 Bar |
| Max Temperature | 35°C |
| Material | Brass |
| Seal Type | EPDM/PTFE/AI.Oxide |
| Impeller Material | Brass |
