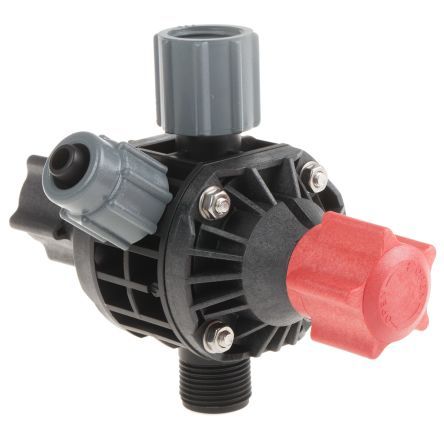

Prominent Multifunction Valve 16 Bar

SKU
792011
MRRP £217.00 + VAT Our price £174.00 (+ VAT) Incl. VAT: £208.80
Order within
Hours
Mins
Secs
for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

Back pressure valve / relief valve for fitting directly on the pump's dosing head with the functions:
Back pressure valve, opening pressure approx. 1.5 bar with free outlet or priming pressure at the suction
end (black rotary dial)
Relief valve, opening pressure approx. 6, 10 or 16 bar (red rotary dial)
Priming aid for pending back pressure, no need to release discharge line
Discharge line relief, e.g. prior to service work
The multifunctional valve is operated by free-moving rotary dials that automatically return to their original
position when released by the operator. This means operation is possible even when access is difficult. The
multifunctional valve is made of PVDF and can be used to meter almost any chemical.
Caution:Back pressure valves are not absolutely leak-tight shut-off devices! It is essential that you observe
the installation notes in the operating instructions!
Caution: The bypass line should always be connected.

Application: multifunctional valves
For material design PP, PV, NP, TT
Back Pressure Valves / Relief Valves for Low-Pressure Metering Pumps
Important: Back pressure valves cannot be used as absolutely leak-tight shut-off devices. Take
appropriate precautions when handling hazardous media.

Valve body PVDF
Diaphragm PTFE- coated
Seal FKM and EPDM

More Information
SKU 792011
Weight 0.5 Kg
Manufacturer ProMinent
