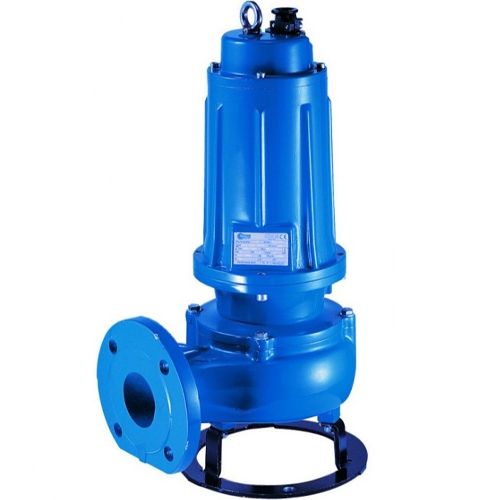

Pentax DCT-560 DN50 High Head Submersible Drainage Pump 415v
* Available where Guaranteed Stock Icon Appears Below
Pentax DCT-560 DN50 High Head Submersible Drainage Pump 415v
The Pentax DC and DCT are a range of heavy duty high head submersible pumps designed for drainage of both clean and dirty water.
Engineered from solid cast-iron pump body and impeller, the Pentax DC and DCT pumps benefit from a double oil bathed mechanical seal housed within a lubricated chamber which offers positive seal lubrication which extends the pump life and offers reliability time and time again.
Single phase 230v versions and three phase 400v versions are available. The single phase, 230v Pentax DC and DCT pumps are supplied with an external capacitor.
The Pentax DC and DCT high head pumps come with a side outlet with the DC160, DC210, DCT160, DCT210 and DC310 versions including a 2 inch threaded port. In contrast, the DCT410, DCT560, DCT750 and DCT1000 models are supplied on flange couplings. Counter flange kits can be purchased individually if required.
Features:
- cast iron pump body
- cast iron impeller
- max solids 10mm
Applications:
- heavy duty
- clean water
- dirty water
| SKU | 020-642 |
|---|---|
| Weight | 64.0 Kg |
| Dimensions | 595mm (h) x 237mm (w) x 350mm (l) |
| Manufacturer | Pentax |
| Manufacturers Warranty | 1 Year |
| Material | Cast Iron |
| Impeller Material | Cast Iron |
| Connection Type | 50mm Flanged |
| Voltage | 415V 3Ph 50Hz |
| Max Flow | 850 l/min |
| Max Head | 38m |
| Full Load Current (FLC) | 10.7A |
| Motor Size (kW/W) | 4kW |
| Cable Length | 10m |
