NB 125-400/384 A F A E BQQE Single Stage End Suction 960RPM 15kW Pump 415V

SKU
98975856
MRRP £11,332.00 + VAT Our price £7,933.00 (+ VAT) Incl. VAT: £9,519.60
Order within
Hours
Mins
Secs
for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

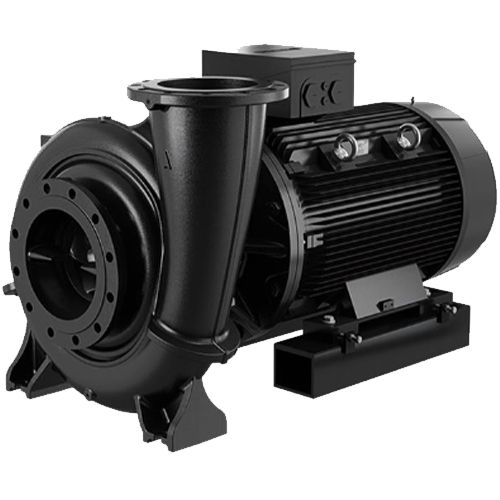

Grundfos NB 125-400/384 A F A E BQQE Single Stage End Suction Bloc Pump with 6 Pole and 960rpm Motor 415V 3Ph 50Hz, 15kW Motor

Single-stage end suction bloc pump:

  • Non-self-priming, single-stage, centrifugal volute pump designed according to ISO 5199 with dimensions and rated performance according to EN 733 (10 bar).
  • Flanges are PN 16 with dimensions according to EN 1092-2.
  • The pump has an axial suction port, radial discharge port, horizontal shaft and a back pull-out design enabling removal of the motor, motor stool, cover and impeller without disturbing the pump housing or pipework.
  • The unbalanced rubber bellows seal is according to DIN EN 12756.
  • The pump is close-coupled to a fan-cooled asynchronous motor.
  • For pumping thin, clean or lightly contaminated liquids without abrasive or long-fibred solids.
  • Suitable for water supply, industrial pressure boosting, industrial liquid transfer, HVAC and irrigation.
  • 125mm outlet and 150mm inlet.
  • A flange kit comprising of two sets of flanges is required, see related accessories for options.
More Information
SKU 98975856
Manufacturer Grundfos
Manufacturers Warranty 2 Years
GTIN 5712604550809
Weight 437.0 Kg
Dimensions 1099mm (w) x 715mm (h) x 604mm (d)
Inlet Dimension 150mm Flanged
Discharge Dimension 125mm Flanged
Motor Size (kW/W) 15 kW
Full Load Current (FLC) 17.8-16.6 A
Voltage 415V 3Ph 50Hz
RPM 975rpm
Max Flow 218m3/hr
Max Head 24m
Max Temperature 120°C
Material Cast Iron
Impeller Material Cast Iron
