Mikrofill MikroPro 50 Pressurisation Set with 50 ltr Vessel and Service Valve

SKU
100050
MRRP £1,434.00 + VAT Our price £1,376.00 (+ VAT) Incl. VAT: £1,651.20
Order within
Hours
Mins
Secs
for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

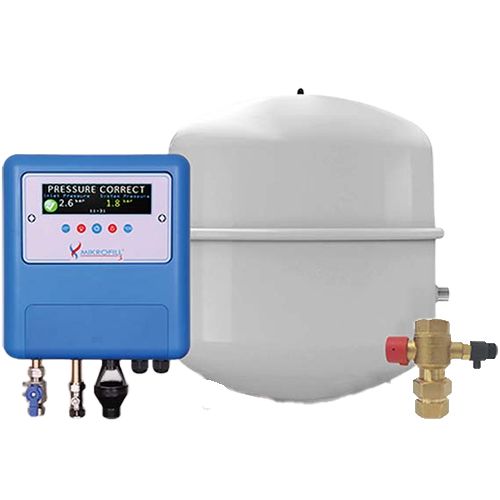

The Mikrofill 50 is an extremely compact and convenient sealed system pressurisation package. Comprising the Mikrofill 3 advanced ‘direct-type’ pressurisation unit capable of cold fill pressurising a system up to 4.7 bar, a MikroPro 50 litre (6 bar) expansion vessel and a ¾” quick fit service valve, the Mikrofill 50 is suitable for a range of LPHW/CHW applications.

Mikrofill 3 Features:

  • Fills any LPHW/CHW system from empty
  • Connects directly to the mains/boosted water supply
  • 4.7 bar cold fill pressure
  • Consumes 10 watts on standby and 30 watts fully operational per hour
  • Compact size & wall mounted
  • Digital control system and LCD graphic display
  • Automatic system fill and top-up
  • Easy to install and set up
  • High flow, WRAS approved fill valve
  • Fill volume indicator - Aids water treatment calculation
  • Category 4 backflow protection
  • 2 year warranty

MikroPro Features:

  • 50 litre tank capacity
  • For heating and chilled water applications
  • Complies with the pressure equipment directive (PED) 97/23/EC
  • Maximum operating temperature of 70°C
  • Maximum operating pressures of 6 bar
  • Durable powder coated finish
  • Threaded connections

Applications:

  • Maintaining system pressure in large domestic and commercial sealed heating systems
  • Maintaining system pressure in chilled water systems, refrigeration units and industrial cooling systems
More Information
SKU 100050
Manufacturer mikrofill
Manufacturers Warranty 2 Years
Weight 15.0 Kg
Inlet Dimension 15mm Compression
Discharge Dimension 15mm Compression
Full Load Current (FLC) 1.0 Amp
Voltage 240V 1Ph 50Hz
Max Flow Nominal 14 l/min @ 2 Bar
Max Pressure Cold Fill Max - 4.7 Bar
Max Temperature 23 DegC
