Lutz Drum Pump Set for Solvents (Complete Drum Drainage) MEll 3 240v Motor 1200mm Immersion Depth

SKU
0205-502
MRRP £2,756.30 + VAT Our price £2,343.00 (+ VAT) Incl. VAT: £2,811.60
Order within
Hours
Mins
Secs
for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

For easily flammable hydrocarbons
such as ethanol, gasoline, butanol, isopropanol, kerosene, methanol, petroleum, etc.

• with motor ME II 3, 460 W,
  explosion proof*

Delivery rate: up to 77 l/min
Delivery head up to 14 m wc
Viscosity: up to 500 mPas

or optionally

• with compressed air motor MD-2
  400 W / 6 bar, explosion proof*

Delivery rate: up to 68 l/min
Delivery head: up to 17 m wc
Viscosity: up to 700 mPas

Immersion length:
1000 and 1200 mm available from stock

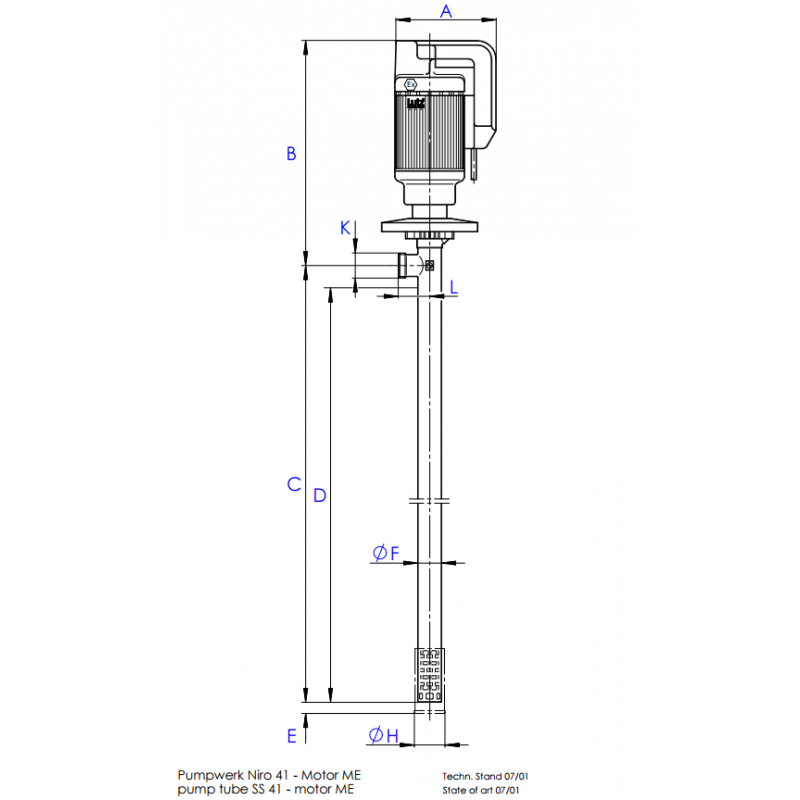

Pump set consisting of:
Motor ME II 3 or MD-2, Pump tube RE SS 41-L-MS
stainless steel, 2 m solvent hose 3/4" electrically conductive bound with hose connectors brass, nozzle brass, equipotential bounding cable, drum adapter PP (without Ex-plug).

* according to ATEX Directive 2014/34/EU, category 2


More Information
SKU 0205-502
Manufacturer Lutz-Jesco
Manufacturers Warranty 1 Year
Weight 25.0 Kg
Motor Size (kW/W) 460W
Voltage 240V 1Ph 50Hz
Cable Length 5 Metres
Max Flow 77l/m
Max Head 14m
Material Polypropylene
