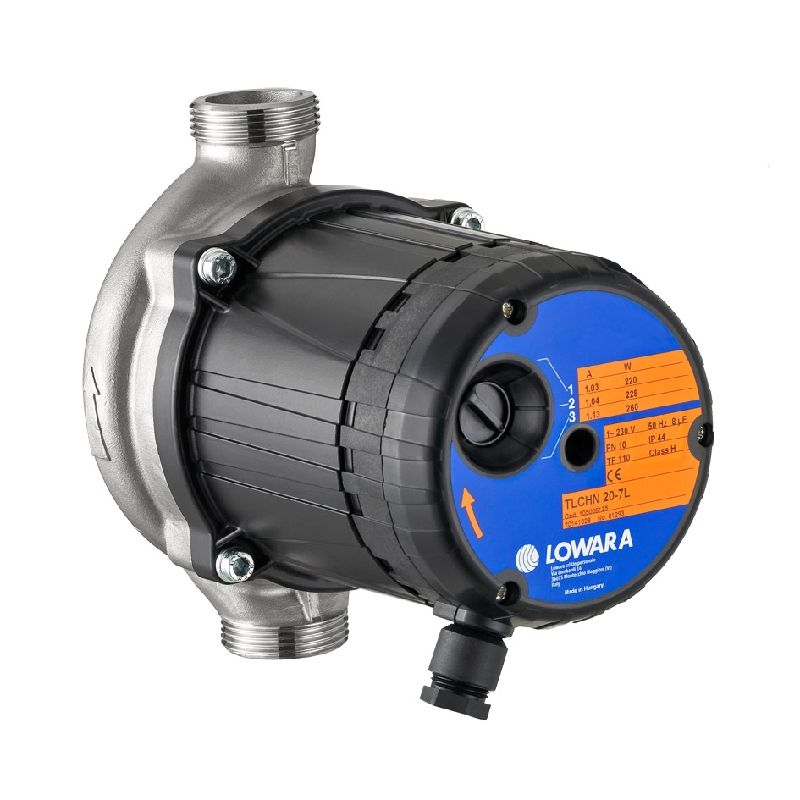

Lowara TLCHN 20-12L SHW Stainless Steel Circulator 240v
* Available where Guaranteed Stock Icon Appears Below
Fixed speed single phase glandless wet rotor circulators with standard induction motor. Bearings are lubricated by the pumped media. Designed for hot water recirculation in building and industrial installations to provide immediate availability of hot water.
- Wet rotor type, with bearings lubricated by the pumped liquid
- Axial and radial bearings made of ceramic
- Single-phase 230 V 50 Hz power supply
- Terminal box axially integrated in the motor
- Three-speed hand selector motor
- Insulation class 180 (H)
- Protection class IP 44
Motor
- Pump Body - Stainless steel
- Impeller - Composite material
- Shaft - Ceramic
- Inner Jacket - Stainless steel
- Wear Ring - Ceramic
- Bearings - Ceramic
- Gaskets - EPDM
Materials
| SKU | 105016165 |
|---|---|
| Manufacturer | Lowara |
| Weight | 6.7 Kg |
| Dimensions | 206mm x 180mm x 136mm |
| Connection Type | 1 1/4 Inch BSP |
| Voltage | 240V 1Ph 50Hz |
| Max Flow | 5m3/hr |
| Max Head | 12m |
| Max Pressure | 10 Bar |
| Max Temperature | 2°C to 110°C |
| Material | Stainless Steel |
| Impeller Material | Composite |
