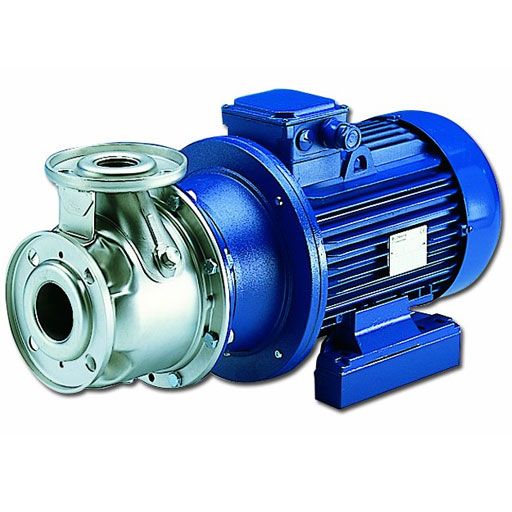

- SHE Close-coupled with special motor shaft extension
- SHS With stub shaft and standard motor
- SHF With flexible coupling, adapter, base and standard motor in compliance with EN 733 - DIN 24255
- Delivery: up to 240 m³/h
- Head: up to 110 m
- Power supply: both single and three-phase 50 and 60 Hz
- Power: from 0.25 kW up to 75 kW
- Maximum operating pressure: 12 bar
- Temperature of pumped liquid: from -10 °C to 120 °C
All SH series are supplied with FPM seals and O-Rings as standard. All pumps can be supplied fitted with WRAS approved seals on request at extra cost.
Models ending /P are fitted with the new PLM High Efficiency Motors.
|Manufacturers Warranty||2 Years|
|Dimensions||605mm Long x 405mm High x 345mm Wide|
|Motor Size (kW/W)||11.0kW|
|Full Load Current (FLC)||3.76A|
|Voltage||415V 3Ph 50Hz|
