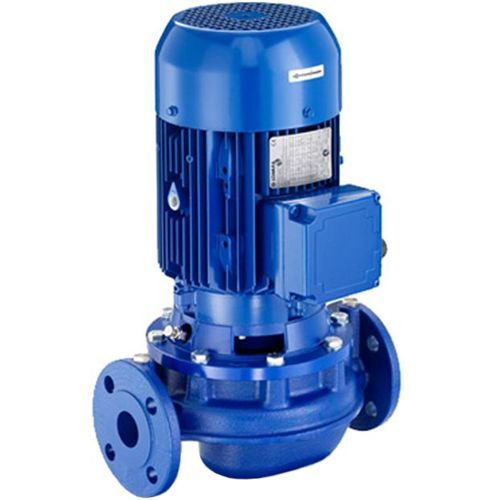

Lowara LNEE 50-160/03/S45RCS4 Single Stage In-Line Pump 4 Pole 415v

SKU
101884670
MRRP £1,939.00 + VAT Our price £1,357.30 (+ VAT) Incl. VAT: £1,628.76
Order within
Hours
Mins
Secs
for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

The new Lowara e-LNE Series is the result of the close collaboration between our customers and us; the new range has been redesigned and improved to meet the Commercial Building Services (CBS) requirements, in terms of performances and energy saving.

In addition the new Lowara e-LNE Series can be customized to meet the needs of the Industry, keeping the bestin-class quality in production that affords our pumps continuous reliability and robustness in operation.

Pump design

The new Lowara e-LNE Series is a single-impeller centrifugal pump with in-line suction and delivery flanges. The e-LNE Series has a “Back pull-out design (impeller, adapter, and motor can be extracted without disconnecting the pump body from the piping system).

The pumps have cast iron casing as standard; the impeller standard material is cast iron but is also available in bronze and stainless steel. The pumps are equipped with interchangeable mechanical seals and IE3 efficiency motors;lease contact us for possible constructions

Benefits

The Lowara e-LNE Series permit to achieve the following benefits.

  • Performances: the e-LNE pumps are ErP 2015 compliant, equipped with IE3 motors, and with hydraulic targetpoints and coverage that satisfy the needs of CBS applications. The standard full cast iron version with PN16, 120°C maximum fluid temperature, and EPDM elastomer is exactly what the CBS Market needs.
  • Reliability: robust construction and high-quality standards in production, interchangeable mechanical seals and wear rings, guarantee a continuous operation without faults and a shorter down time for maintenance.
  • Versatility: beside the standard offer, the Lowara e-LNE series is available in different construction as well as with different material configurations for impellers and elastomers. That helps in addressing a wide range of applications.
  • Total cost ownership: the best-in-class hydraulic and electric efficiency, the Hydrovar or the e-SM drive equipped versions, the easy and quick maintenance, allow to reduce the operation and maintenance cost and to save energy when the pump is working or is at rest.
  • Potable water use: All pumps are certified for drinking water use (ACS and D.M.174/04).
More Information
SKU 101884670
Manufacturer Lowara
Manufacturers Warranty 2 Years
Weight 32.0 Kg
Dimensions 247 x 340 x 479mm
Connection Type 2 Inch Flanged
Motor Size (kW/W) 0.37kW
Voltage 415V 3Ph 50Hz
RPM 1450
Max Flow 20 m3/h
Max Head 5.2 Metres
Max Pressure 16 Bar
Max Temperature 120°C
Material Cast Iron
Impeller Material Cast Iron
