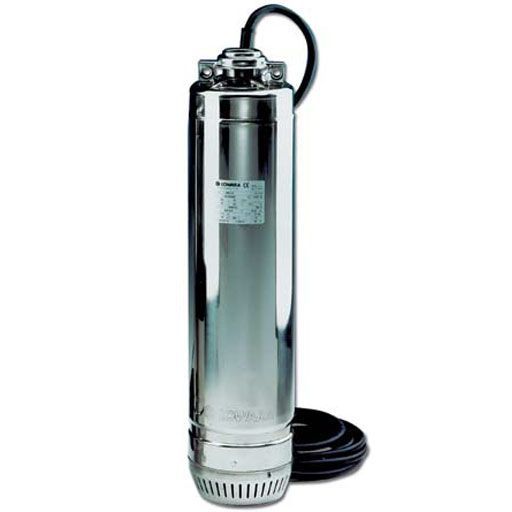

Lowara 3SC5/07/5 T L20 Submersible Borehole Pump without Floatswitch 415v

SKU
107700385
MRRP £995.00 + VAT Our price £696.50 (+ VAT) Incl. VAT: £835.80
Order within
Hours
Mins
Secs
for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

APPLICATIONS

  • Water supply from primary water supply tanks or reservoirs, 6” wells, basins and watercourses.
  • Sprinkler irrigation systems.
  • Pressure boosting with pump directly inserted in tank or well.
  • Rain water harvesting.
  • Car washing system.
  • Pressurization on board ship
  • Air purification/humidafication systems
  • Filtration systems
  • Water recycling systems

CHARACTERISTIC DATA:

  • Delivery: up to 10,8 m3/h at 2850 rpm.
  • Head: up to 100 m at 2850 rpm.
  • Motor power: 0,55 to 2,2 kW.
  • Maximum operating pressure: 10 bar.
  • Single-phase version: 220-240 V, 50 Hz 2 poles (2850 rpm).
  • With built-in automatic reset overload protection.
  • Standard version with built-in capacitor, or external capacitor upon request
  • Three-phase version: 380-415 V, 50 Hz 2 poles (2850 rpm).
  • Overload protection to be provided by user and installed in the control panel.
More Information
SKU 107700385
Manufacturer Lowara
Manufacturers Warranty 2 Years
Weight 16.0 Kg
Dimensions 555mm high x 128mm diameter
Connection Type 1 1/4 Inch BSP Female
Motor Size (kW/W) 0.75 kW
Full Load Current (FLC) 2.30 A
Voltage 415V 3Ph 50Hz
Cable Length 20 mtrs
Max Flow 4.2 m3/hr
Max Head 57 mtrs
Material Stainless Steel
Impeller Material Technopolymer
