KSB Hya-Rain N Rainwater Harvesting Pump 240V

SKU
29130435
MRRP £3,533.00 + VAT Our price £2,902.00 (+ VAT) Incl. VAT: £3,482.40
Order within
Hours
Mins
Secs
for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

KSB Hya-Rain N Plug-in package system for rainwater and service water recycling, as well as irrigation systems.  The Hya-Rain will handle clean to turbid water not containing aggressive, abrasive or solid substances.

Suitable for use in:

  • Rain water utilisation
  • Service water utilisation
  • Irrigation systems
  • Sprinkling systems

Hya-Rain N consists of:

  • Self-priming multistage centrifugal pump
  • Cervomatic ME control and monitoring unit
  • System control with liquid level indicated (in %) in the display
  • Tank with integrated mains water back-up system equipped with a mechanical float valve and class A/B airgap to EN 1717
  • Programmable water replacement function in case of permanent rain water mode
  • Three-way valve with electric actuator automatically switching between rain water storage tank and mains water storage tank
  • Terminals for connecting a booster pump (e.g. Ama-Drainer)
  • Set of mounting elements for wall mounting consisting of bolts, pegs and mounting angle steel
  • Expansion joints for discharge side and mains water connection (length approx. 30/50 cm)
  • Sensor with 3 m cable and connection box
  • Illustrated instructions for quick installation including mounting pattern

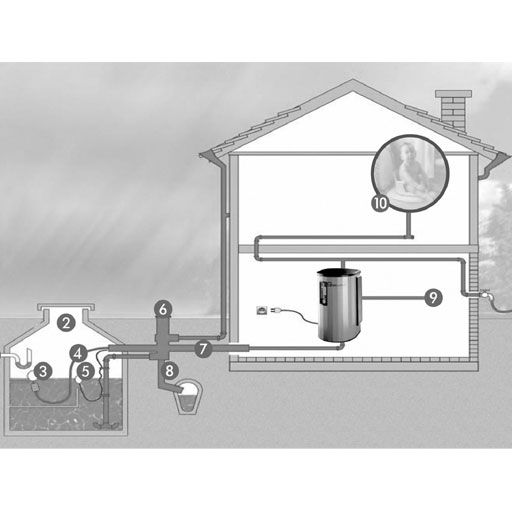

For the collection of rain water, Hya-Rain can be combined with subterranean or basement-installed storage systems.

More Information
SKU 29130435
Manufacturer KSB
Manufacturers Warranty 1 Year
Weight 27.0 Kg
Dimensions 630mm High x 360mm Deep x 410mm Wide
Motor Size (kW/W) 800W
Full Load Current (FLC) 3.7A
Voltage 240V 1Ph 50Hz
Cable Length 1.5m
Max Flow 4m3/h
Max Head 43m
Material Stainless Steel
