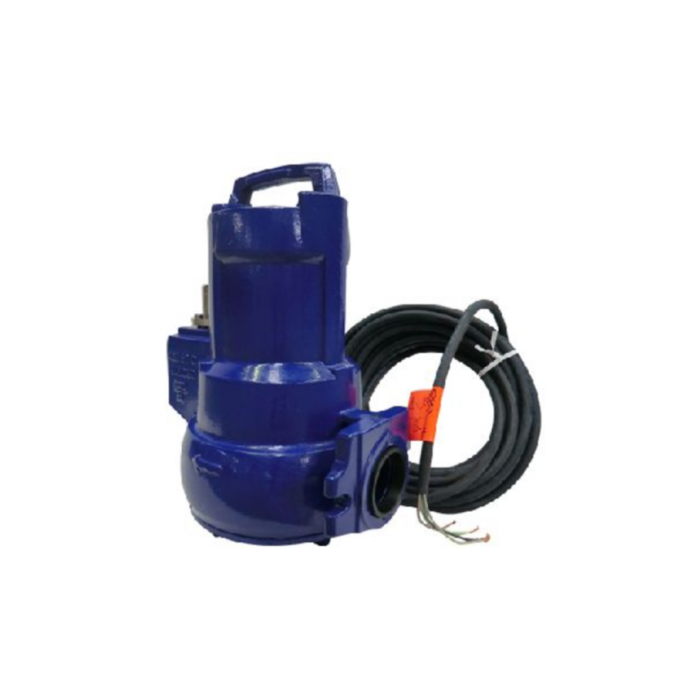

KSB AMA-Porter S 545 ND Submersible Cutter Pump without Floatswitch 415V

MRRP £2,476.12 + VAT Our price £1,362.00 (+ VAT) Incl. VAT: £1,634.40
Order within
for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

 The AMA-Porter S 545 ND Submersible Cutter Pump is suitable for:

  • Pumping waste water containing solid matter or domestic sewage from toilets, washing machines and dishwashers
  • Surface water or rain water pumping from car parks or other uneven surfaces
  • Drainage of sumps and cellars that are prone to flooding

 We highly recommend the portable installation kit be fitted to this pump, the kit comprises feet, elbow, hose tail and fixings.

The AMA-Porter 500 series have 2" Flanged female discharge ports.

More Information
SKU 39017859
Weight 24.0 Kg

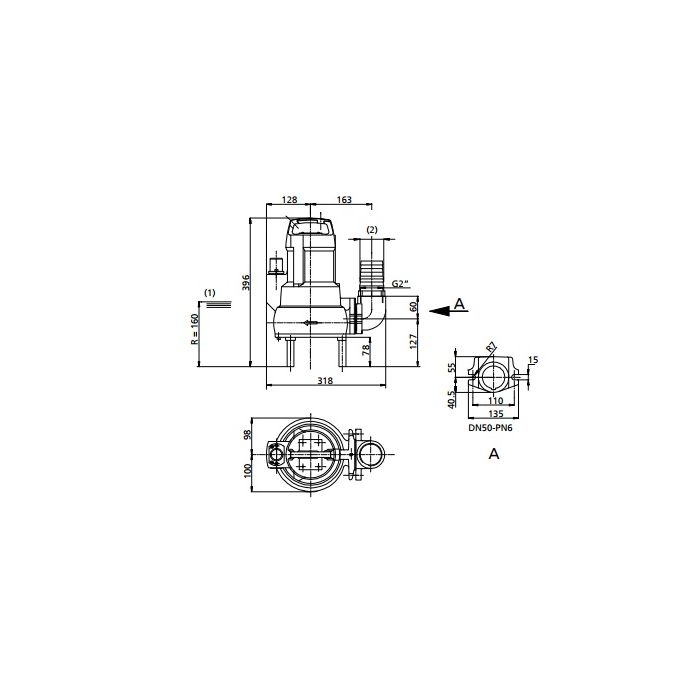

Dimensions 396mm High x 318mm Deep x 198mm Wide
Manufacturer KSB
Manufacturers Warranty 2 Years
Material Cast Iron
Connection Type 2 Inch Flanged Female
Voltage 415V 3Ph 50Hz
Max Flow 17 m3/hr
Max Head 21m
Full Load Current (FLC) 3.5A
Motor Size (kW/W) 1.5 kW
Cable Length 10 Metres
