KSB AMA-Porter 503 SE Submersible Waste Water Pump with floatswitch 240 Volt

SKU
39017182
MRRP £1,028.71 + VAT Our price £655.00 (+ VAT) Incl. VAT: £786.00
Order within
Hours
Mins
Secs
for next day delivery i

KSB's range of Ama-Porter floodable, vertical, single-stage submersible waste water pumps made of cast iron, for pumping a variety of applications consisting of waste water and sewage.

The Ama-Porter range have flanged connections and are available in 240V 1Ph 50Hz or 400/415V 3Ph 50Hz models and can be used for the following applications:

  • Pumping of waste water containing solid matter or domestic sewage from toilets, washing machines and dishwashers in intermittent operation
  • Surface water or rainwater pumping from car parks and uneven surfaces
  • Drainage of sumps and cellars liable to flooding

The AMA-Porter 500 series have 2" Flanged female discharge ports.

The AMA-Porter 600 series have 2 1/2" Flanged female discharge ports.

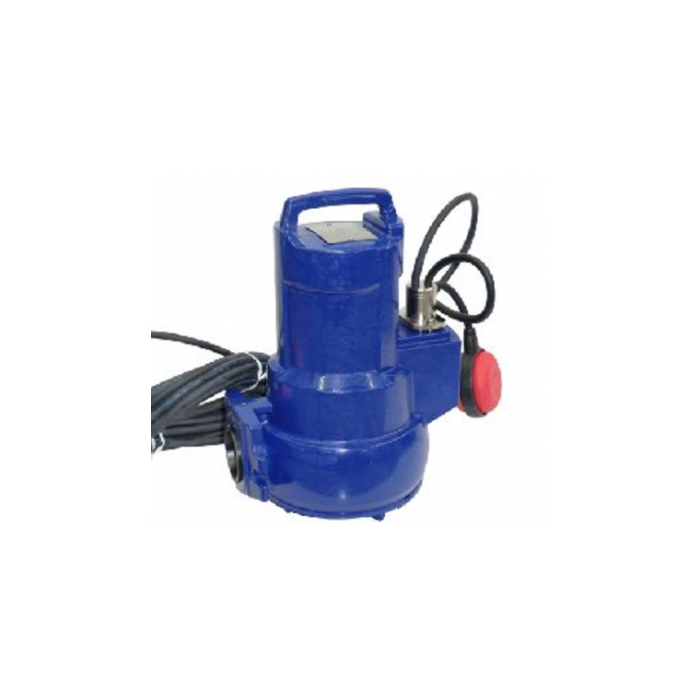

We strongly recommend that the Series 500 Portable Installation Kit is purchased with this Pump.  The pump is shown with installation kit fitted, which comprises of hosetail, feet and fixings.

More Information
SKU 39017182
Weight 22.0 Kg

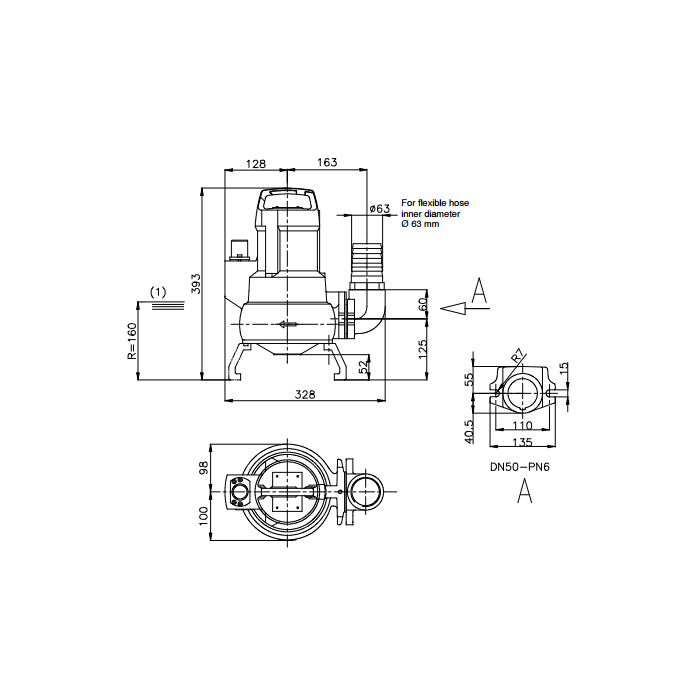

Dimensions 393mm High x 328mm Deep x 198mm Wide
Manufacturer KSB
Manufacturers Warranty 2 Years
Material Cast Iron
Connection Type 2 Inch Flanged Female
Voltage 240V 1Ph 50Hz
Max Flow 29 m3/hr
Max Head 16m
Full Load Current (FLC) 8.2A
Motor Size (kW/W) 1.1kW
Cable Length 3 Metres
Float Switch Yes
