KSB AMA-Drainer N 302 SE Submersible Dirty Water Pump 240v

MRRP £381.00 + VAT Our price £321.00 (+ VAT) Incl. VAT: £385.20
Order within
for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

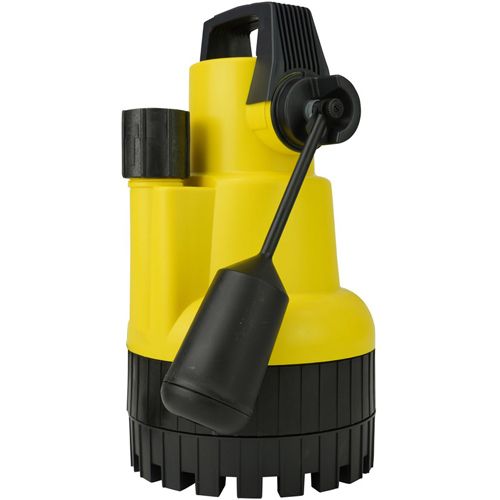

KSB AMA-Drainer N 302 SE Submersible Dirty Water Pump 240v - 39300075

The KSB Ama-Drainer N 302 SE (39300075) is a submersible motor pump capable of operating at an immersion depth of up to two metres. The Ama-Drainer N 302 SE/NE can handle waste water with dirt particles up to a particle size of 10 mm. The maximum flow rate is 12 cubic metres per hour, the max. head is 10 metres.

Fluids Handled:

  • faecal-free waste water
  • grey water
  • river, lake and groundwater


  • drainage and lowering of surface water levels
  • extraction of water from rivers and reservoirs
  • automatic drainage of pits, shafts and cellars
  • drainage of underground passages
  • general drainage


  • pump casing - Polypropylene, glass fibre reinforced (30%)
  • discharge casing - Polypropylene, glass fibre reinforced (30%)
  • casing cover - Noryl GNF3
  • impeller - Noryl GNF2
  • motor housing - Chrome nickel steel (1.4301)
  • float switch - Polypropylene

This pump has 1 1/4" BSP female discharge port and built in non-return valve.

More Information
SKU 39300075
Weight 7.2 Kg
Dimensions 363mm High x 214mm Diameter
Manufacturer KSB
Manufacturers Warranty 2 Years
Material Plastic
Impeller Material Noryl GNF2
Connection Type 1 1/4 Inch BSP Female
Voltage 240V 1Ph 50Hz
Max Flow 3.5 l/s
Max Head 10m
Full Load Current (FLC) 4.0A
Cable Length 3 Metres
Float Switch Yes
