This pump directly replaces the UPS 25-55 and UPS 25-80 directly. No alteration to pipework or fittings is necessary.

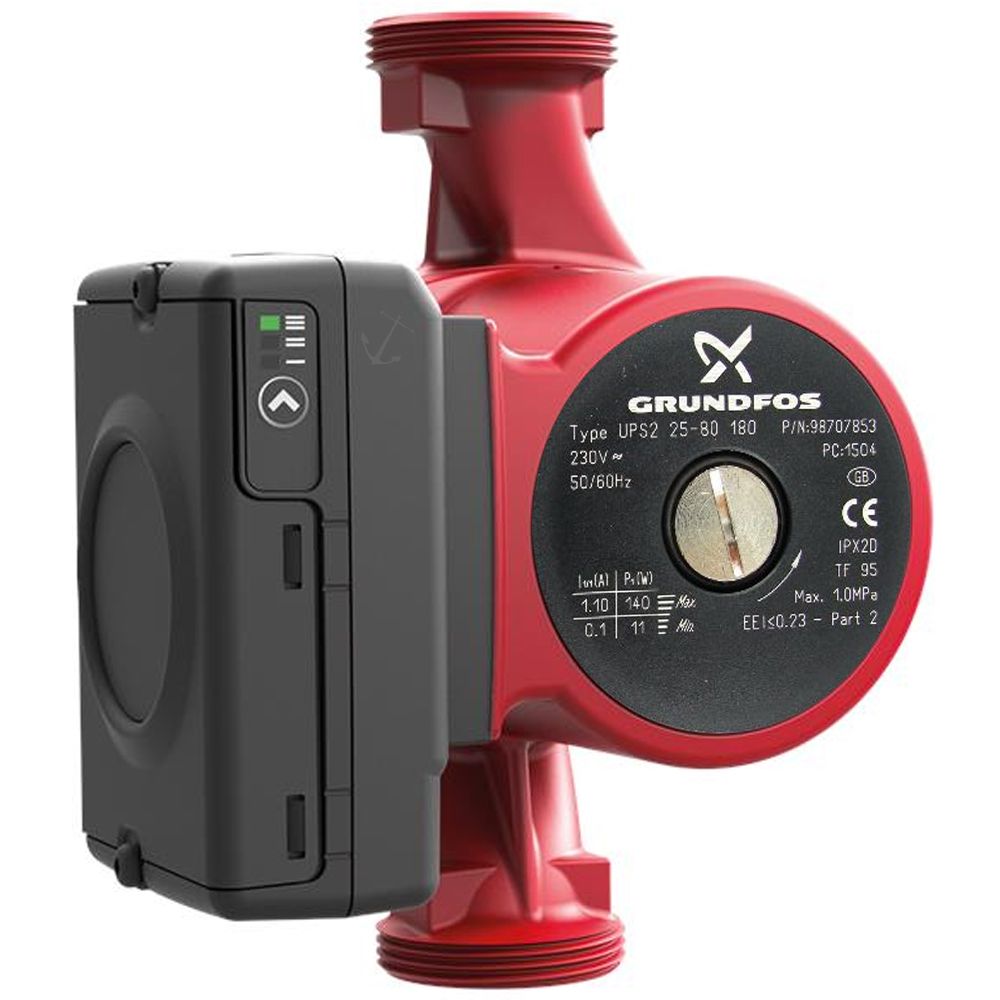

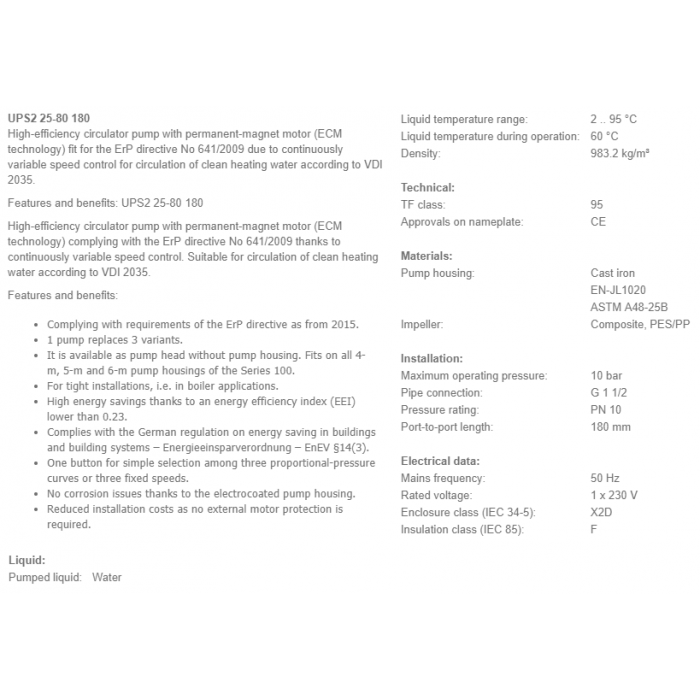

The new Grundfos UPS2 25-80 (180) is a high-efficiency circulator pump with permanent-magnet motor (ECM technology) and continuously variable speed control for circulation of clean heating water.
The UPS2 25-80 (180) is the ideal replacement for the UPS 25-55 and 25-80 in domestic heating systems, it comes complete with modern motor technology and electronic control which enables it to exceed new EuP/ErP standards. It is also available as a complete pump or as a pump head only.
Features and benefits

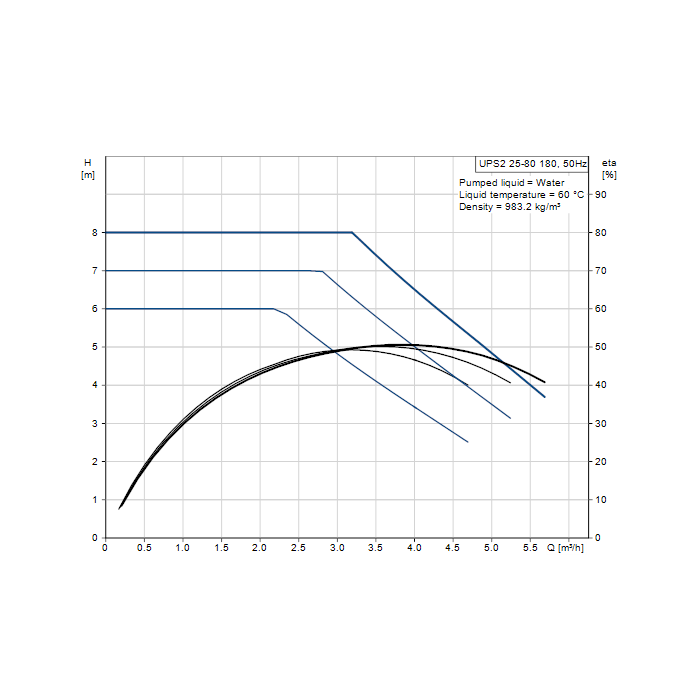

- integrated differential-pressure control enabling adjustment of pump performance to the actual system requirement
- motor based on permanent-magnet/compact rotor technology.
- The pumps are energy-optimised and comply with the requirements of the EuP directive.
- The installation of a UPS2 will reduce power consumption considerably, reduce noise from thermostatic valves and similar fittings and improve the control of the system.
The UPS2 range offers a host of advantages:
- Energy savings
- High-efficient permanent-magnet motors.
- Suitable for installation in existing systems.
- Low-noise operation.
- Built-in electrical and thermal protection of the pump.
- User friendliness
- Simple setting and operation.
|Manufacturers Warranty||5 Years|

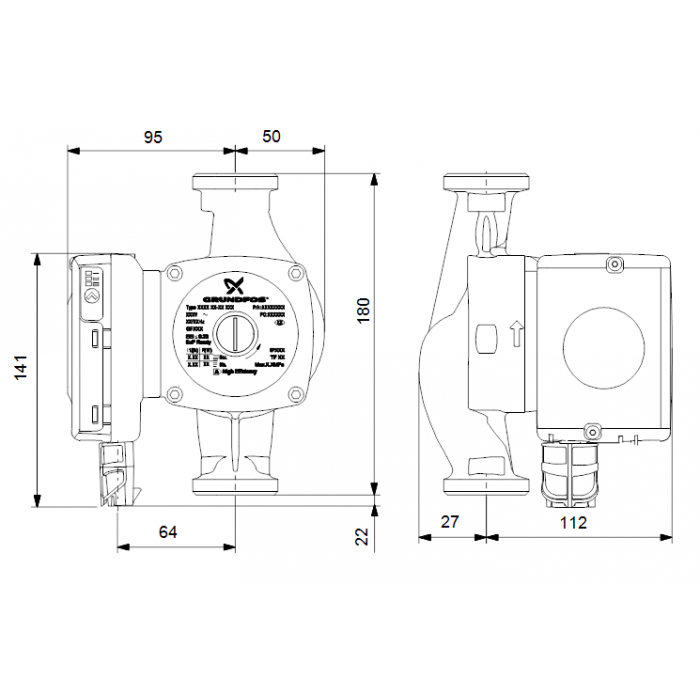

|Dimensions||180mm (h) x 145mm (w) x 139mm (d)|
|Connection Type||1 1/2 Inch BSP|
|Inlet Dimension||1 1/2" bspm|
|Discharge Dimension||1 1/2" bspm|
|Motor Size (kW/W)||11-140W|
|Full Load Current (FLC)||0.01-1.1 A|
|Voltage||240V 1Ph 50Hz|
