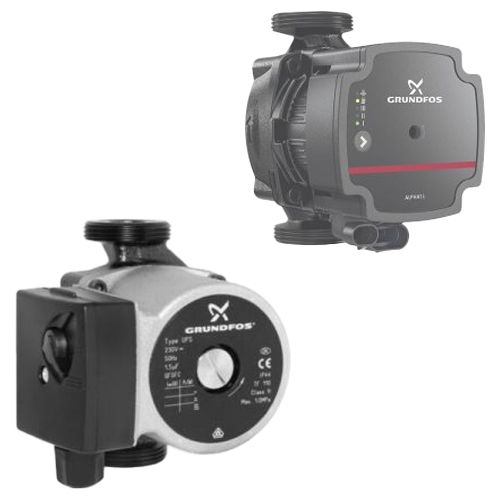

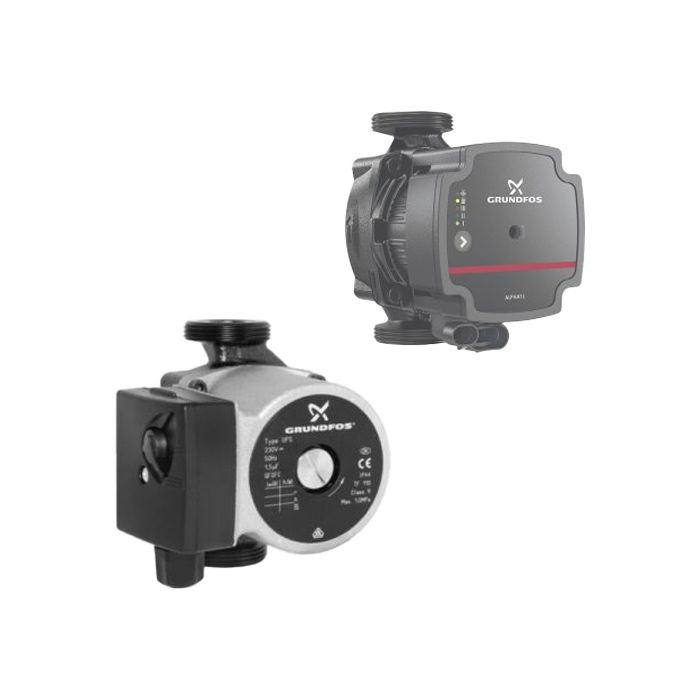

Grundfos UPS2 25-40/60 (130) Domestic Heating Circulator Pump 240v replaced with UPS 25-65 (130)(52900780)

SKU
98393743
MRRP £240.00 + VAT Our price £175.00 (+ VAT) Incl. VAT: £210.00
Order within
Hours
Mins
Secs
for next day delivery i

This pump is now obsolete and will be replaced with UPS 25-65 (130) if ordered.

Please see part number 59200780 for further information

The following text is for information only on the UPS2

The new Grundfos UPS2 25-40/60 (130) is a high-efficiency circulator pump with permanent-magnet motor (ECM technology) and continuously variable speed control for circulation of clean heating water.

The UPS2 is the ideal replacement for UPS 25-40 (130) and UPS 25-60 (130)pumps in domestic heating systems, it comes complete with modern motor technology and electronic control which enables it to exceed new EuP/ErP standards.  It is also available as a complete pump or as a pump head only.

Features and benefits

  • Three Pumps in One - The UPS2 can be set to meet the requirements of a UPS25 model designed for either 4m or 6m performance.
  • Control Box - The control box of the UPS2 can be mounted on the left, right or on the top.
  • Cable Gland - The cable gland of the UPS2 is the same design as that used on both the UPS15-50 and UPS15-60 circulators. This minimises time taken on changeover.
  • Pump Head - Where the existing pump base is in good condition a pump head option can be chosen in order to minimise installation time by replacing the pump head only.
  • Dimensions - The UPS2 is almost identical in overall dimensions to the UPS15-50/UPS15-60 models.
  • Vent screw - The UPS2 is fitted with a screw which allows manual venting to remove air from the heating system.



More Information
SKU 98393743
Manufacturer Grundfos
Manufacturers Warranty 2 Years
Weight 4.0 Kg

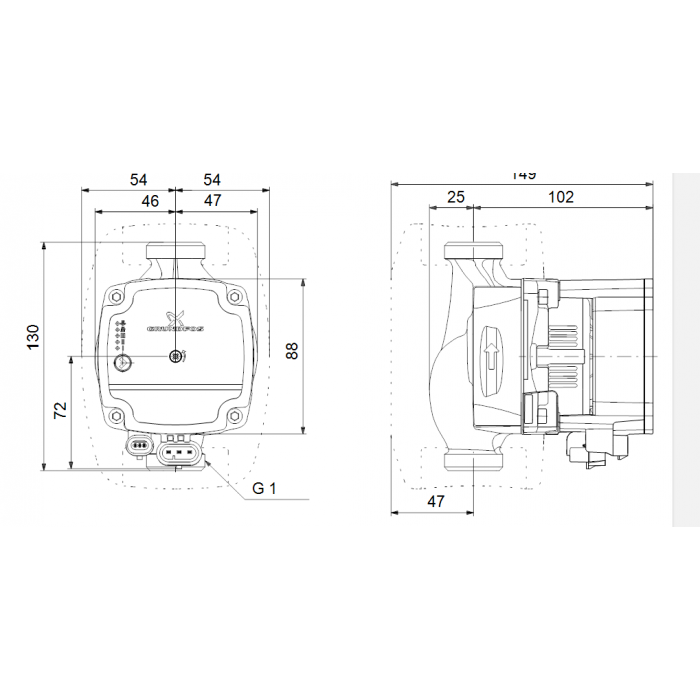

Dimensions 130mm l x 131mm h x 126mm w
Inlet Dimension 11/2" bspm
Discharge Dimension 11/2" bspm
Motor Size (kW/W) 48 W Max
Full Load Current (FLC) 0.42
Voltage 240V 1Ph 50Hz
Cable Length 1.5m
Max Flow 3.0 m3/hr
Max Head 6 mtrs
Max Temperature 95 degC
Material Cast Iron
Impeller Material PES
