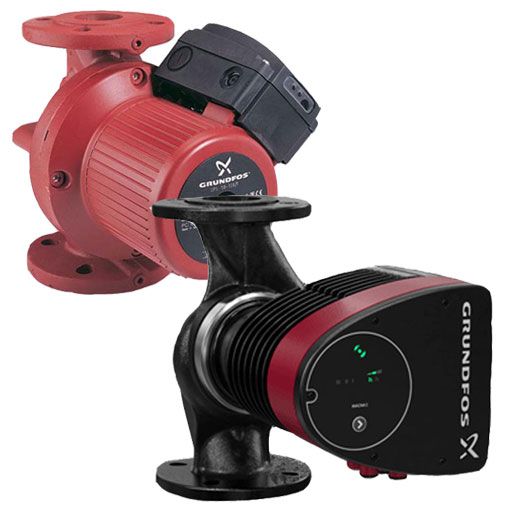

Grundfos UPS 65-30/4 (340) Single Head Commercial Circulator 240V replaced with MAGNA1 65-40F (340)

SKU
96402177/ 99221382
MRRP £2,419.40 + VAT Our price £1,404.00 (+ VAT) Incl. VAT: £1,684.80
Order within
Hours
Mins
Secs
for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

Grundfos UPS 65-30/4 (340) Single Head Commercial Circulator 240V replaced with MAGNA1 65-40F (340) - 96402177/ 99221382

Due to new European Legislation brought into force in January 2013, the UPS 50-180/2 (280) is no longer manufactured.  On purchase of this pump, you will receive the new EUP ready Energy Efficient MAGNA1 50-150F (280) at no extra cost.

Please note, this pump requires no alteration to pipework and will directly replace your old UPS pump.

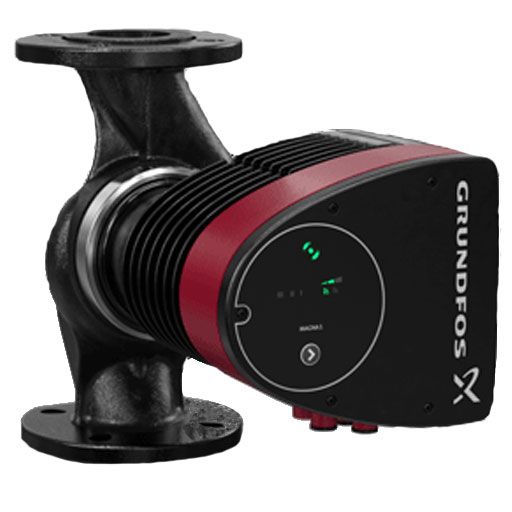

The Grundfos MAGNA1 65-40F (340)'A' Rated/EuP Ready variable speed circulator with easy selection of pump setting, no maintenance requirements and extremely low life cycle cost.  The MAGNA1 circulator pumps are designed for circulating liquids in heating systems with variable flows and also for domestic hot-water systems.

Applications include:

  • Heating systems
  • Main pump
  • Mixing loops
  • Heating and Air-conditioning

The pump is also suitable for systems with hot-water priority as an external signal can immediately force the pump to operate according to the max. curve, for  example in solar-heating systems.

Benefits:

  • Safe selection
  • Simple installation
  • Low energy consumption (MAGNA1 pumps comply with the EuP requirements)
  • Nine light fields for indication of pump setting.
  • Three proportional-pressure curves, three constant-pressure curves and three fixed-speed curves are available
  • Low noise level
  • Maintenance free and long life

Liquid:

  • Pumped liquid: Water
  • Liquid temperature range: -10 .. 110 °C

MAGNA1 65 range has 340mm port-to-port dimensions and all have 65mm flanged connections.



More Information
SKU 96402177/ 99221382
Manufacturer Grundfos
Manufacturers Warranty 2 Years
Weight 23.0 Kg
Dimensions 340mm (h) x 266mm (w) x 386mm (d)
Motor Size (kW/W) 23.15-190W
Full Load Current (FLC) 0.24-0.9A
Voltage 240V 1Ph 50Hz
Max Flow 28m3/hr
Max Head 4m
Material Cast Iron
Old Sku 96402177
