Grundfos SP270-6W-G 10" Submersible Borehole Pump 147kW 415V

SKU
96430974
MRRP £33,302.00 + VAT Our price £23,312.00 (+ VAT) Incl. VAT: £27,974.40
Order within
Hours
Mins
Secs
for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

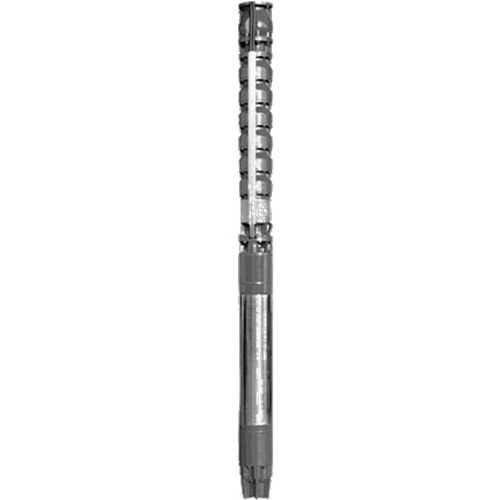

Grundfos SP270-6W-G 10" Submersible Borehole Pump 147kW 415V

Multi-stage submersible pump for raw water supply, groundwater lowering, pressure boosting and varius industrial jobs. The pump is suitable for pumping clean, thin, non-aggressive liquids without solid particles or fibres.

The pump is made entirely of Cast iron DIN W.-Nr. EN-JL1040 and suitable for horizontal installation.

SP pumps provide low long-term costs and high operating reliability regardless of the application. The pump is fitted with a built-in non-return valve.

The motor is a 3-phase motor with sand shield, liquid-lubricated bearings and pressure equalizing diaphragm.

Please contact our offices for drop cable options. On purchase of the pump and cable, our fitters can supply a waterproof joint kit free of charge and attach the cable to your new SP pump. The pump will then be delivered ready to use and validate the warranty.

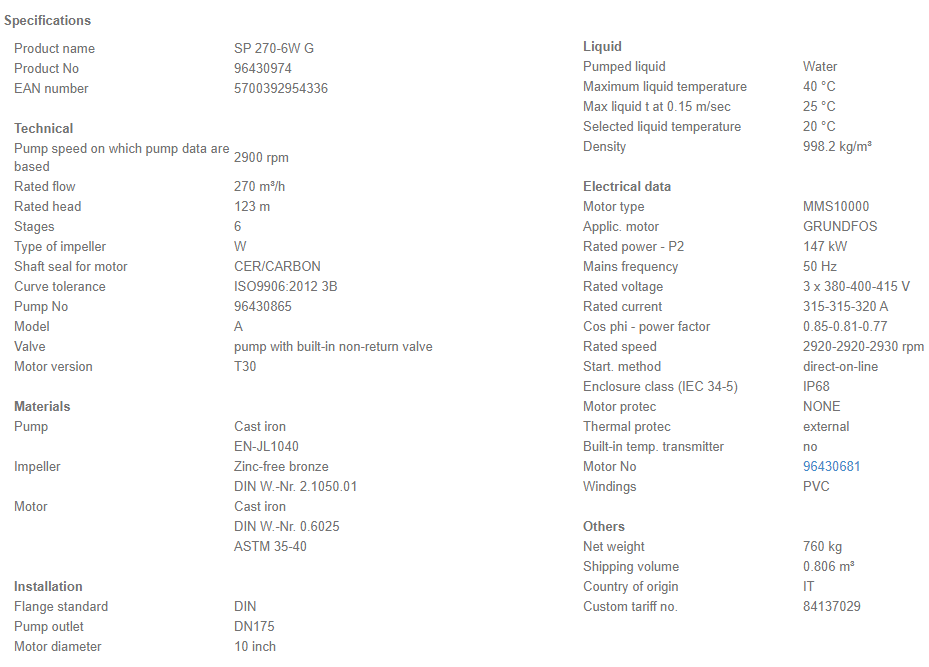

More Information
SKU 96430974
Manufacturer Grundfos
Manufacturers Warranty 2 Years
GTIN 5700392954336
Weight 760.0 Kg

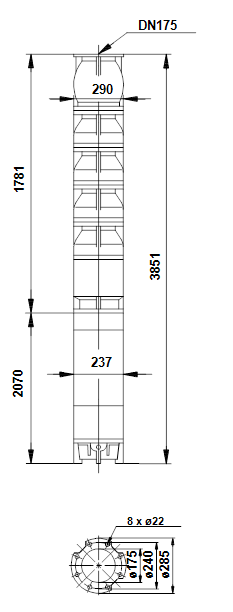

Dimensions 3851mm (h) x 290mm (d)
Motor Size (kW/W) 147 kW
Full Load Current (FLC) 315-315-320 A
Voltage 415V 3Ph 50Hz
RPM 2900rpm
Max Flow 347m3/hr
Max Head 255m
Max Temperature 40 degrees C
Material Cast Iron
Impeller Material Zinc-free Bronze
