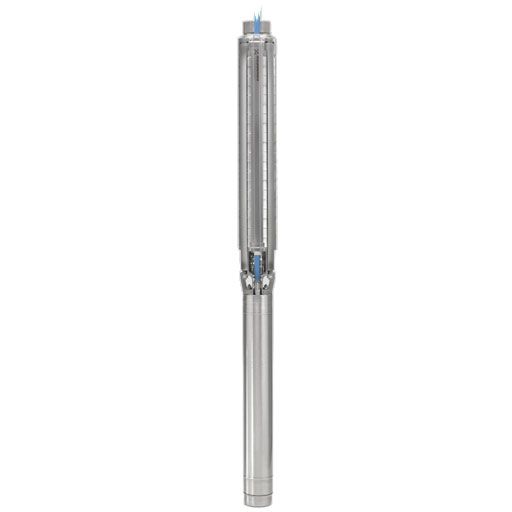

Grundfos SP17-1 4" Submersible Borehole Pump 0.55kW 240V

MRRP £1,571.00 + VAT Our price £1,022.00 (+ VAT) Incl. VAT: £1,226.40
Order within
for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

Grundfos SP17-1 4" Submersible Borehole Pump 0.55kW 240V

Grundfos SP range of 4" - 10" single or three phase submersible borehole pumps with hydraulic design, constructed entirely from corrosion resistant stainless steel AISI 304.

The Grundfos SP range can handle flows of up to 470 m3/h and heads up to 810m this guarantees a high-quality water supply which is reliable and efficient.

SP pumps provide low long-term costs and high operating reliability regardless of the application.

The borehole pumps are suitable for:

  • Groundwater supply to waterworks
  • Irrigation in horticulture and agriculture
  • Groundwater lowering
  • Water pressure boosting
  • Industrial applications
  • Fountains
  • Thermal waters, pools and springs

Please note: A Grundfos control box must be used with SP single phase submersible motors, otherwise the 2 year guarantee will be invalid.

Please see related products for associated drop cable. On purchase of the pump and cable, our fitters can supply a waterproof joint kit free of charge and attach the cable to your new SP pump. The pump will then be delivered ready to use and validate the warranty.

More Information
SKU 12A02401
Manufacturer Grundfos
Manufacturers Warranty 2 Years
GTIN 5700391277108
Weight 13.0 Kg
Dimensions 605mm (h) x 131mm (d)
Motor Size (kW/W) 0.55 kW
Full Load Current (FLC) 5.5 A
Voltage 240V 1Ph 50Hz
RPM 2900rpm
Max Flow 22m3/hr
Max Head 12m
Max Temperature 40 degrees C
Material Stainless Steel
Impeller Material Stainless Steel


We offer free standard delivery to any UK address on a 3-5 working day delivery time on all orders over the value of £45 + vat. This is not weight restricted

Next day delivery is charged at £12.50 + vat for items under 35kgs.  Orders need to be placed before 5pm Mon-Thurs or 4:30 on Friday for guaranteed Next Day Delivery.

Next day delivery is not available for UK Highlands and Islands. Please click the following link to view postcodes/areas that don't qualify for next day delivery.


Due to some product specifications, there may be a lead time of up to 4 weeks. This is only on a small number of products and you will be contacted upon purchase and entitled to a full refund if required.

For Items over 35kgs, please review our delivery charges here

For full delivery terms please click here

International Delivery

If you want your order delivered to a remote area please contact our one of our Sales Representatives on 0800 112 3134 before placing your order and we will assist you further.


Please note specific items may incur a restocking charge as they are made to order, the cost of which, it determined by the manufacturer not ourselves. Items that are made to order or cut to specific length e.g. Hose cut to specific length may not be entitled to a refund.

Please contact customer services for clarification.

Unused, unaltered items may be returned at the buyers expense for credit upon Anchor Pumps prior written consent and upon the terms specified by Anchor Pumps.  The buyer assumes all risk of loss of such returned goods until actual receipt and acceptance by Anchor Pumps.  Please click here to view Returns information.
