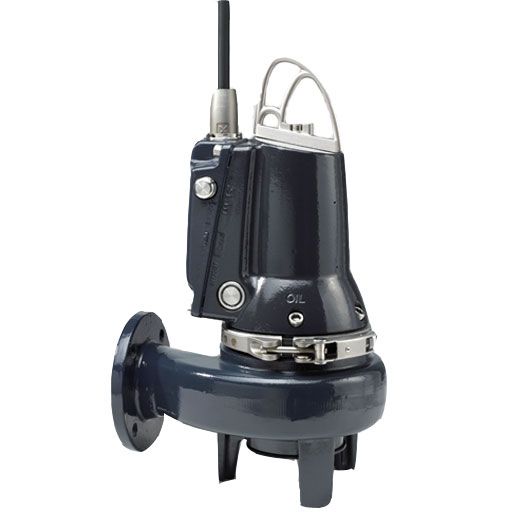

The Grundfos SL/SLV pumps are SuperVortex (free-flow) and single channel impeller pumps specifically designed for pumping sewage and wastewater in a wide range of municipal, private and industrial applications. The pumps are available with motors of 0.6 kW and up to and including 2.6 kW.
The SL18.104.22.168.E.2.1.502.B 240V 1ph 50Hz has a Tube Impeller and DN65 port dimensions.
The pumps are available for:
- submerged installation on auto-coupling system
- submerged installation, free-standing
- municipal wastewater
- wastewater with high content of fibres (SuperVortex impeller)
- drainage water and groundwater
- domestic wastewater
- industrial wastewater
- process and cooling water
- municipal network pumping stations
- public buildings
- blocks of flats
All pumps have the following features:
- Watertight cable entry of corrosion-resistant polyamide
- Power supply cable incorporating wires for thermal sensors in the motor windings
- No additional cable required for sensors in pumps with sensors
- Monitoring of operating conditions for pumps with sensors
- Moisture detector for continuous monitoring of motor enclosure and automatic cut-out in case of leakage
- Heavy-duty bearings greased for life
- Built for frequency converter operation
- Smooth pump surface prevents dirt and impurities from sticking to the pump
- Self-cleaning channel impeller with long vanes reducing the risk of jamming or clogging, or Super-Vortex impeller with high pumping efficiency and less downtime
- Explosion-proof motors for potentially explosive environments
- Motor insulation class F (155 °C)
- Enclosure class IP68 with thermal sensor in each phase
|Manufacturers Warranty||2 Years|
|Dimensions||588mm (h) x 242mm Diameter|
|Motor Size (kW/W)||1.1 kW|
|Full Load Current (FLC)||7.4A|
|Voltage||240V 1Ph 50Hz|
|Max Flow||17.5 l/sec|
