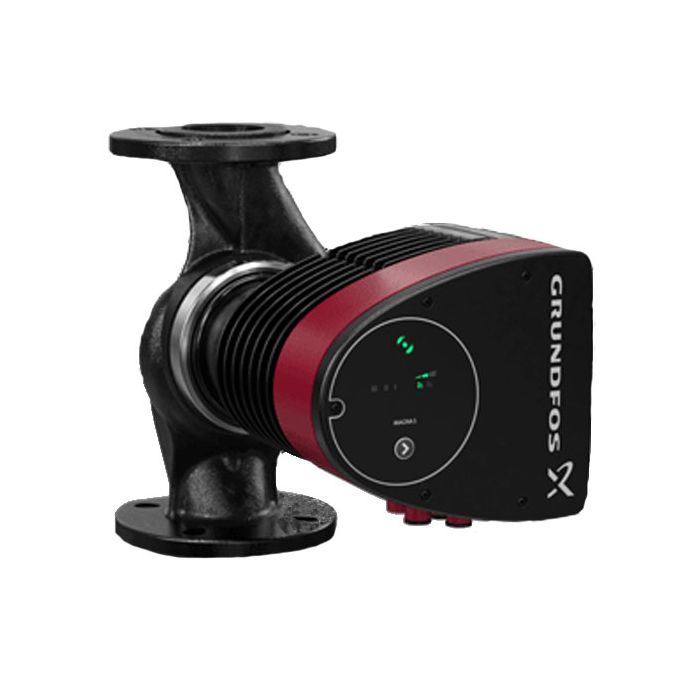

Grundfos MAGNA1 50-180F (280) 'A' Rated/EuP Ready Variable Speed Circulator 240V (99221338)

SKU
97924194
MRRP £3,776.00 + VAT Our price £2,191.00 (+ VAT) Incl. VAT: £2,629.20
Order within
Hours
Mins
Secs
for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

The Grundfos MAGNA1 50-180F (280)'A' Rated/EuP Ready variable speed circulator with easy selection of pump setting, no maintenance requirements and extremely low life cycle cost.  The MAGNA1 circulator pumps are designed for circulating liquids in heating systems with variable flows and also for domestic hot-water systems.

Applications include:

  • Heating systems
  • Main pump
  • Mixing loops
  • Heating and Air-conditioning

The pump is also suitable for systems with hot-water priority as an external signal can immediately force the pump to operate according to the max. curve, for  example in solar-heating systems.

Benefits:

  • Safe selection
  • Simple installation
  • Low energy consumption (MAGNA1 pumps comply with the EuP requirements)
  • Nine light fields for indication of pump setting.
  • Three proportional-pressure curves, three constant-pressure curves and three fixed-speed curves are available
  • Low noise level
  • Maintenance free and long life

Liquid:

  • Pumped liquid: Water
  • Liquid temperature range: -10 .. 110 °C

MAGNA1 50-40F to 50-80F have 240mm port-to-port dimensions, MAGNA1 50-100F to 50-180F have 280mm port-to-port dimensions and all have 50mm flanged connections.

More Information
SKU 97924194
Manufacturer Grundfos
Manufacturers Warranty 2 Years
GTIN 5710626492688
Weight 20.5 Kg

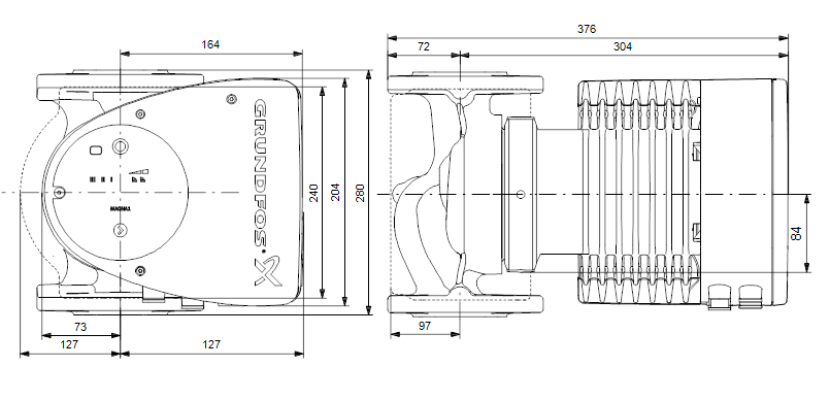

Dimensions 280mm (h) x 254mm (w) x 376mm (d)
Motor Size (kW/W) 22.13-769W
Full Load Current (FLC) 0.24-3.4A
Voltage 240V 1Ph 50Hz
Max Flow 37m3/h
Max Head 16m
Material Cast Iron

Delivery

We offer free standard delivery to any UK address on a 3-5 working day delivery time on all orders over the value of £45 + vat. This is not weight restricted

Next day delivery is charged at £12.50 + vat for items under 35kgs.  Orders need to be placed before 5pm Mon-Thurs or 4:30 on Friday for guaranteed Next Day Delivery.

Next day delivery is not available for UK Highlands and Islands. Please click the following link to view postcodes/areas that don't qualify for next day delivery.



Due to some product specifications, there may be a lead time of up to 4 weeks. This is only on a small number of products and you will be contacted upon purchase and entitled to a full refund if required.

For Items over 35kgs, please review our delivery charges here

For full delivery terms please click here

International Delivery

If you want your order delivered to a remote area please contact our one of our Sales Representatives on 0800 112 3134 before placing your order and we will assist you further.

Returns

Please note specific items may incur a restocking charge as they are made to order, the cost of which, it determined by the manufacturer not ourselves. Items that are made to order or cut to specific length e.g. Hose cut to specific length may not be entitled to a refund.

Please contact customer services for clarification.

Unused, unaltered items may be returned at the buyers expense for credit upon Anchor Pumps prior written consent and upon the terms specified by Anchor Pumps.  The buyer assumes all risk of loss of such returned goods until actual receipt and acceptance by Anchor Pumps.  Please click here to view Returns information.

File Downloads

pdf
(Size: 1.9 MB)
Magna UPE Series 2000 - 30-120, 40-120, 50-120, 65-120, 50-60, 65-60
pdf
(Size: 2.2 MB)
pdf
(Size: 4.1 MB)
