Grundfos MAGNA1 40-180F (250) 'A' Rated/EuP Ready Variable Speed Circulator 240V (99221307)

SKU
97924180
MRRP £3,008.00 + VAT Our price £1,745.00 (+ VAT) Incl. VAT: £2,094.00

BEST ONLINE PRICES

FREEPHONE 0800 112 3134 if you've seen it cheaper.

Order within
Hours
Mins
Secs
for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

The Grundfos MAGNA1 40-180F (250)'A' Rated/EuP Ready variable speed circulator pumps are designed for circulating liquids in heating systems with variable flows and also for domestic hot-water systems with easy selection of pump setting, no maintenance requirements and extremely low life cycle cost.

Applications include:

  • Heating systems
  • Main pump
  • Mixing loops
  • Heating and Air-conditioning

The pump is also suitable for systems with hot-water priority as an external signal can immediately force the pump to operate according to the max. curve, for  example in solar-heating systems.

Benefits:

  • Safe selection
  • Simple installation
  • Low energy consumption (MAGNA1 pumps comply with the EuP requirements)
  • Nine light fields for indication of pump setting.

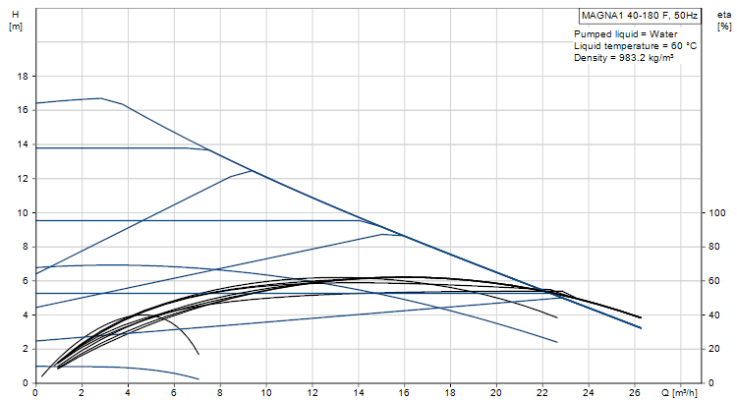

  • Three proportional-pressure curves, three constant-pressure curves and three fixed-speed curves are available
  • Low noise level
  • Maintenance free and long life

Liquid:

  • Pumped liquid: Water
  • Liquid temperature range: -10 .. 110 °C

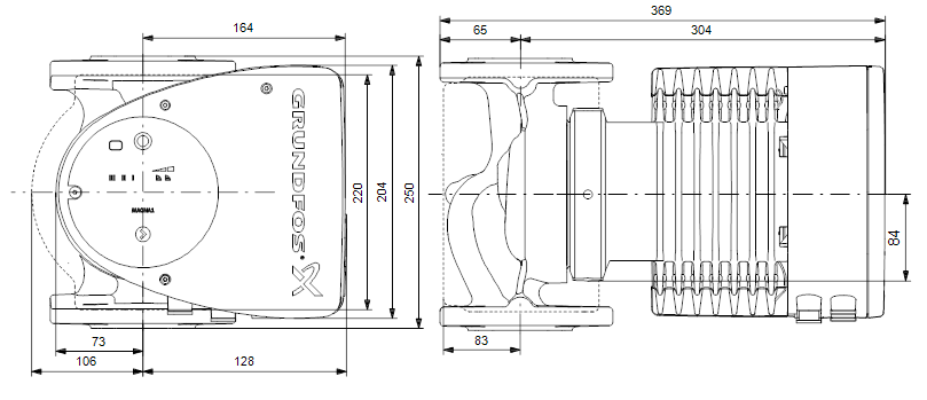

MAGNA1 40-150F and 40-180F have 250mm port-to-port dimensions and 40mm flanged connections.

More Information
SKU 97924180
Manufacturer Grundfos
Manufacturers Warranty 2 Years
GTIN 5710626492541
Weight 17.7 Kg
Dimensions 250mm (h) x 234mm (w) x 369mm (d)
Motor Size (kW/W) 16.01-615W
Full Load Current (FLC) 0.22-2.71A
Voltage 240V 1Ph 50Hz
Max Flow 27m3/h
Max Head 17m
Material Cast Iron
