Grundfos Hydro MPC-E 3 CRIE10-1 (240v) Booster Set

SKU
98426924
MRRP £21,228.00 + VAT Our price £14,860.00 (+ VAT) Incl. VAT: £17,832.00
Order within
Hours
Mins
Secs
for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

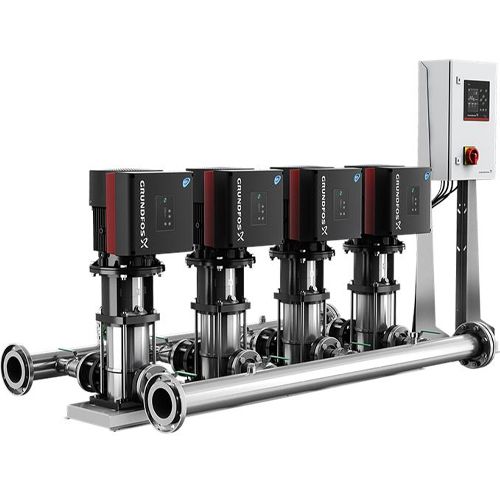

Hydro MPC-E 3 CRIE10-1

Pressure booster system supplied as compact assembly according to DIN standard 1988/T5.

All pumps are speed-controlled.

From 0.37 to 11 kW, the booster system is equipped with CR, CRE, CRI, CRIE pumps with electronically commutated permanent-magnet motors with extremely high efficiency. The total efficiency of the motor including the frequency converter applies to IE5 level in IEC60034-31.

From 15 to 22 kW, the booster system is equipped with CR, CRE, CRI, CRIE pumps with motors with integrated frequency control. The total efficiency of the motor including the frequency converter is better than the IE3 level in IEC60034-31, even though this standard only applies to the motor.



  • Hydro MPC-E maintains a constant pressure through continuous adjustment of the speed of the pumps.
  • The system performance is adapted to the demand through cutting in/out the required number of pumps and through parallel control of the pumps in operation.
  • Pump changeover is automatic and depends on load, time and fault.

The system consists of these parts:
Pump parts in contact with the pumped liquid are made of stainless steel EN DIN 1.4301 Pump bases and heads are of either cast iron/stainless steel (CRI) or cast iron EN-GJS-500-7 (CR), depending on pump type; other vital parts are made of stainless steel EN DIN 1.4301 The pumps are equipped with a service-friendly cartridge shaft seal, HQQE (SiC/SiC/EPDM)

  • Two stainless steel manifolds to EN DIN 1.4571
  • Stainless steel base frame to EN DIN 1.4301 up to CR 90; above CR 90 the pumps are placed on a galvanized I-Beam frame
  • One non-return valve (POM) and two isolating valves for each pump
  • Non-return valves are certified according to DVGW, isolating valves according to DIN and DVGW
  • Adapter with isolating valve for connection of diaphragm tank
  • Pressure gauge and pressure transmitter (analog output 4-20 mA)
  • Control MPC in a steel cabinet, IP54, including main switch, all required fuses, motor protection, switching equipment and microprocessor-controlled CU 352.

Dry-running protection and diaphragm tank are available according to the list of accessories.

Pump operation is controlled by Control MPC with the following functions:

  • Intelligent multipump controller, CU 352.
  • Constant-pressure control through continuously variable adjustment of the speed of each individual pump.
  • PID controller with adjustable PI parameters (Kp + Ti).
  • Constant pressure at setpoint, independent of inlet pressure.
  • Soft pressure build-up (To prevent water hammer during startup).
  • On/off operation at low flow.
  • Automatic cascade control of pumps for optimum efficiency.
More Information
SKU 98426924
Manufacturer Grundfos
Manufacturers Warranty 2 Years
Weight 190.0 Kg
Inlet Dimension DN80
Voltage 240V 1Ph 50Hz
Max Flow 47 m³/h
Max Head 14 m
Max Pressure 16 bar
Max Temperature 60°C
Material Stainless Steel
Manufactured In United Kingdom
