Grundfos CRN 185-2 A F H E HQQE 45kW Vertical Multi-Stage Pump 415v

SKU
99143738
MRRP £31,463.00 + VAT Our price £22,025.00 (+ VAT) Incl. VAT: £26,430.00
Order within
Hours
Mins
Secs
for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

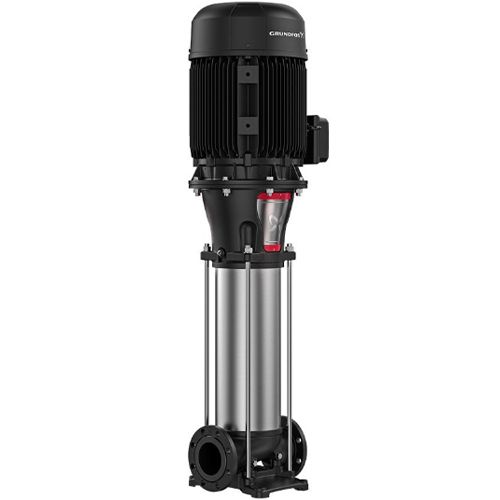

Grundfos CRN 185-2 A F H E HQQE 45kW Vertical Multi-Stage Pump with DIN flanged connection 415v

Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline).

Pump materials in contact with the liquid are in high-grade stainless steel.

The Grundfos cartridge shaft seal ensures high reliability, safe handling, and easy access and service.

Power transmission is via a rigid split coupling.

Pipe connection is via combined DIN flanges.

The pump is fitted with a 3-phase, fan-cooled asynchronous motor.

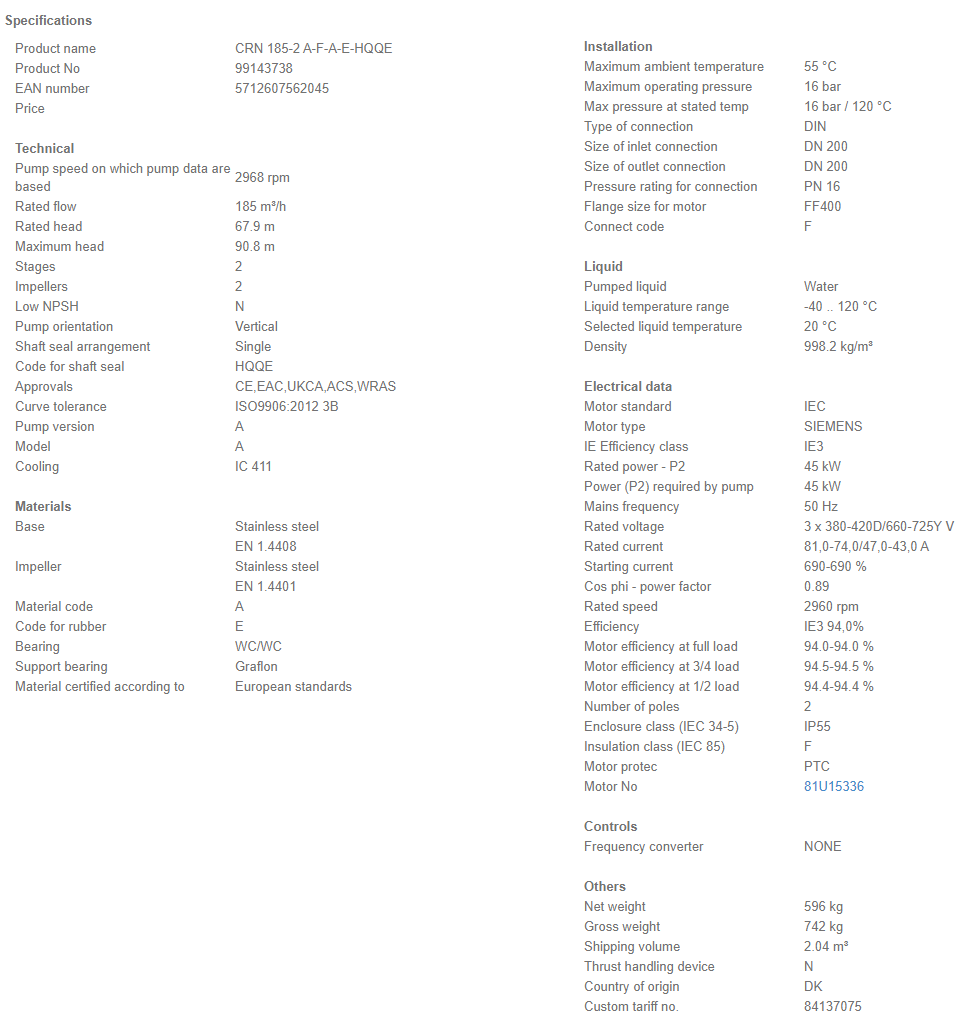

More Information
SKU 99143738
Manufacturer Grundfos
Manufacturers Warranty 2 Years
GTIN 5712607562045
Weight 742.0 Kg

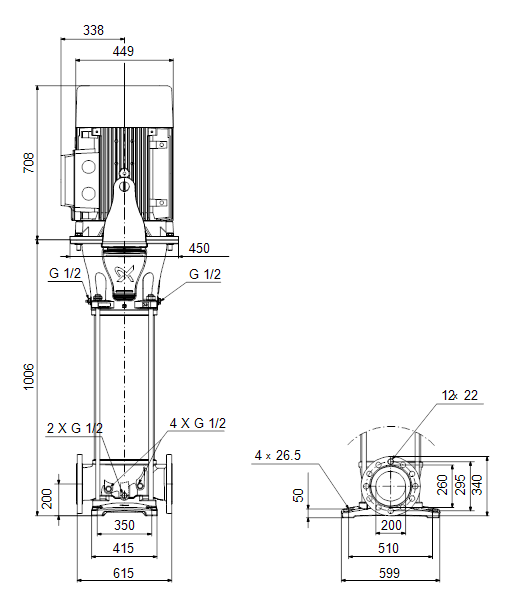

Dimensions 1714mm (h) x 599mm (w) x 615mm (d)
Inlet Dimension DN 200
Discharge Dimension DN 200
Motor Size (kW/W) 45 kW
Full Load Current (FLC) 47,0-43,0 A
Voltage 415V 3Ph 50Hz
RPM 2968rpm

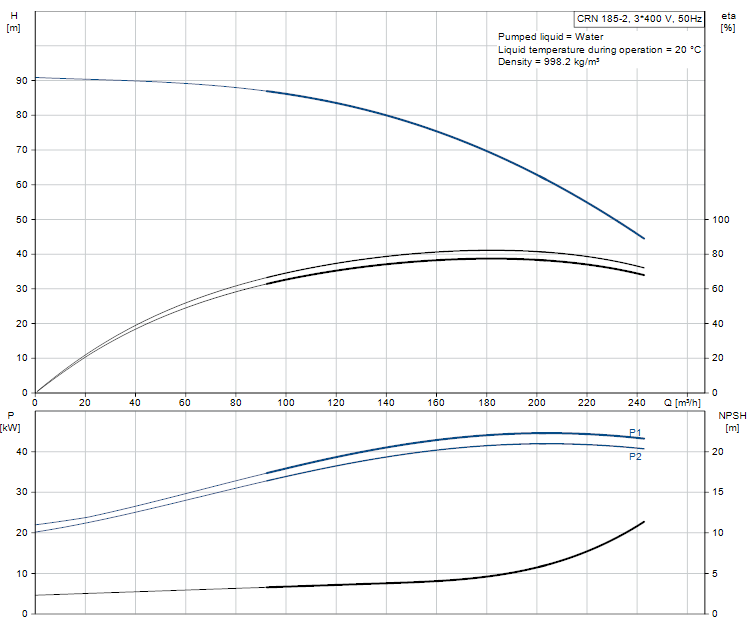

Max Flow 243m3/hr
Max Head 90m
Max Temperature 120 degrees C
Material Stainless Steel
Impeller Material Stainless Steel
