Grundfos CR 155-4-1 A F A V HQQV 55kW Vertical Multi-Stage Pump 415V

SKU
99143268
MRRP £26,146.00 + VAT Our price £18,303.00 (+ VAT) Incl. VAT: £21,963.60
Order within
Hours
Mins
Secs
for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

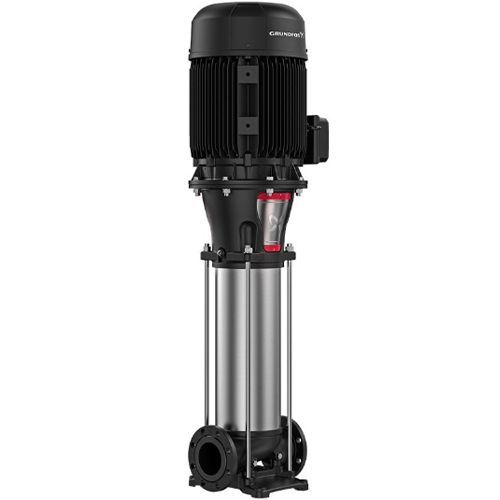

Grundfos CR 155 Pumps are vertical, non-self-priming, multistage, in-line, centrifugal pumps for installation in pipe systems and mounting on a foundation - suitable for Industrial applications.

Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline).

The pump head and base are in cast iron – all other wetted parts are in stainless steel.

The Grundfos cartridge shaft seal ensures high reliability, safe handling, and easy access and service. Power transmission is via a rigid split coupling.

The pump is fitted with a 3-phase, fan-cooled asynchronous motor.

CR models are DIN flanged as standard and are supplied without counter flanges to EN 1092-2-1997.

More Information
SKU 99143268
Manufacturer Grundfos
Manufacturers Warranty 2 Years
GTIN 5712607553012
Weight 779.0 Kg
Dimensions 1920mm (h) x 499mm (w) x 485mm (d)
Inlet Dimension DN 150
Discharge Dimension DN 150
Motor Size (kW/W) 55 kW
Full Load Current (FLC) 57,0-52,0 A
Voltage 415V 3Ph 50Hz
RPM 2976rpm
Max Flow 204m3/hr
Max Head 142m
Max Temperature -20 - 90 °C
Material Cast Iron
Impeller Material Stainless Steel
